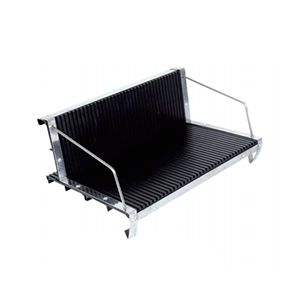

When handling sensitive printed circuit boards, the physical environment must be meticulously controlled. The Anti-static Circulation Rack provides a secure, reliable foundation for managing electronic components during critical manufacturing phases. Running your fingers along the frame, you will immediately notice the dense, rigid structure of the conductive polymer, finished with a smooth, matte texture that prevents abrasive damage to delicate board edges. There is no flex or structural weakness when fully loaded; the rack maintains absolute dimensional stability. Instead of the sharp, sudden snap of electrostatic discharge, this rack ensures a continuous, safe dissipation path, grounding any accumulated charge instantly. Every groove is molded with exacting precision, ensuring that inserted boards slide in smoothly but remain firmly locked in place, eliminating the rattling and vibration that can lead to micro-fractures in solder joints during transit.
Constructed through advanced injection molding techniques, this rack utilizes a specialized conductive polymer blend designed for demanding industrial environments. The material exhibits exceptional wear resistance, ensuring that repeated insertion and removal of circuit boards do not result in particulate shedding or structural degradation. This is particularly crucial for maintaining the integrity of cleanroom environments where airborne contaminants must be minimized. Furthermore, the polymer is inherently resistant to corrosive agents often found in soldering fluxes and cleaning solvents. Even under the stress of high-frequency daily turnover, the rack resists warping and impact damage, maintaining its precise geometry over an extended operational lifespan.
Electrostatic discharge remains one of the most significant threats to modern microelectronics. This circulation rack addresses the issue at its core by maintaining a consistent surface resistance. The conductive properties are not merely a surface coating that can wear off over time; they are integrated directly into the polymer matrix. This ensures that the dissipative performance remains active and highly stable, completely unaffected by fluctuations in ambient temperature or facility humidity levels. By providing a reliable path to ground, it comprehensively protects sensitive microprocessors, memory chips, and delicate surface-mount components from catastrophic electrical breakdown or latent damage.
Space optimization on the production floor directly correlates to operational efficiency. The structural layout of this rack features scientifically calibrated slot spacing and depth, engineered to maximize storage density without compromising board safety. A single unit can securely accommodate multiple boards, keeping them perfectly aligned and separated to prevent physical contact and cross-contamination. The design is highly compatible with a wide array of standard motherboard specifications, making it a versatile asset across different product lines. This thoughtful spatial engineering significantly boosts the utilization rate of storage carts, drying ovens, and staging areas, ensuring smooth transitions between assembly stages.
Surface Resistance:104-109Ω
Contour Size: 410x280x165mm
Use Slot Size: (LxH) 225x140mm
38pcs PCB can be stored
Slot width: 2.8mm, depth:5mm
Pitch: 10mm
Beyond the physical attributes of the rack itself, its integration into your workflow is supported by rigorous manufacturing standards and adaptable service models, ensuring a comprehensive solution for electronic component management.
This circulation rack is purpose-built for the rigorous demands of SMT (Surface Mount Technology) production lines, stringent cleanroom facilities, and large-scale electronics assembly plants. It serves as an indispensable tool for the safe and efficient turnover of printed circuit boards throughout their entire lifecycle on the factory floor. Whether the boards are moving through initial solder paste printing, undergoing automated optical inspection, resting in temporary storage, or being transported across different processing stations, the rack ensures they remain organized and shielded from both physical shock and electrostatic threats.
Consistency across large procurement volumes is guaranteed through strict adherence to ISO quality management systems. Before any batch leaves the facility, it undergoes a comprehensive battery of physical and electrical performance evaluations. These rigorous assessments include:
Static Decay Testing: Verifying rapid and safe charge dissipation to protect sensitive microchips.
Load-bearing Trials: Ensuring structural integrity and zero deflection under maximum board capacity.
Accelerated Aging Tests: Simulating years of industrial use to confirm material longevity and dimensional stability.
This uncompromising approach to quality assurance guarantees that every single rack performs identically, providing a reliable foundation for standardized production workflows.
Understanding that automated production lines and proprietary board designs often require unique handling solutions, comprehensive customization services are readily available. Supported by powerful in-house mold development and manufacturing capabilities, the physical dimensions of the rack can be tailored to precise specifications. Whether a project demands non-standard overall dimensions to fit specialized robotic handlers, or custom slot pitches to accommodate unusually thick components or attached heat sinks, the engineering team can rapidly prototype and produce flexible, bespoke solutions that integrate flawlessly into existing automated setups.
To ensure that the products arrive in pristine condition, regardless of the transit distance, every shipment is secured using thickened, anti-collision corrugated cartons and stabilized on standardized shipping pallets. This robust packaging strategy effectively absorbs shocks and vibrations during long-haul cross-border transport. Furthermore, substantial inventory levels are maintained for all standard specifications. This proactive stocking strategy allows for rapid order processing and exceptionally short lead times, ensuring that critical production schedules are met without unnecessary delays or supply chain bottlenecks.
