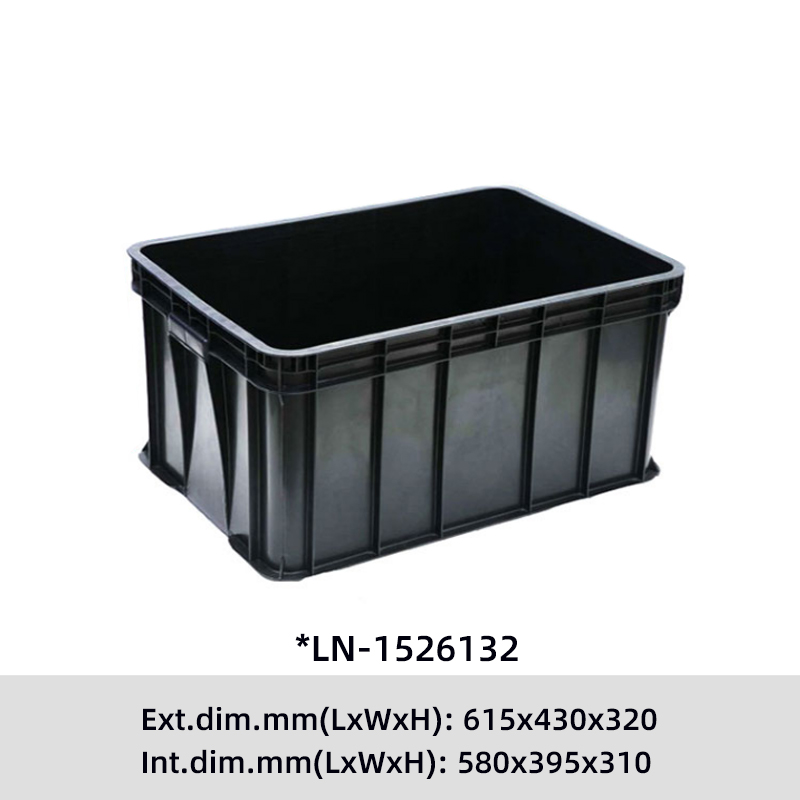

*LN-1526132 ESD Storage Boxes Plastic PP Molding Injection Bins For Storage

Description:

ESD box is ideal for use in commercial, industrial, electronics, and healthcare markets for storage,

assembly, fabrication and distribution.ESD or electro static discharge,

refers to how quickly material will dissipate (charge moves through the product) an electical charge.

Material is rated at different levels for the "resistance" at which it will allow a charge to move through the material.

Conductive material allows the charge to move very fast and has a low resistance.

Static dissipative material allows the charge to move quickly but slower than conductive material.

An insulative product has no movement or a very high resistance.

If parts are sensitive to electrical charges they should be stored in a conductive container.

ESD TECHNICAL DATA :

Conductive   ：  10∧3 - 10∧5 ohms   material has static control properties

Static Dissipative  ：  10∧ 3 - 10∧9 ohms    material has static control properties

Insulative     ：  10∧11 - 10∧12 ohms   material has no static control

ESD BOX FEATURES ：

• Conductive material

•  Strong stacking ridge and innovative ribbed walls ensures high performance

•  Compatible with many kinds of racking, shelving, and material handling equipment

•  Load capacity of 40 lbs. per container

•  Anti-static cardholders available for ESD-Safe identification

•  Optional dividers available

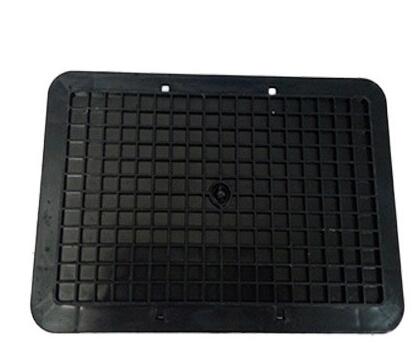

•  Two optional ESD safe covers are available for added product protection, creating a Faraday Cage

ESD Box Specifications:

black anti-static box for pcb

surface resistance: 10^3-10^9 Ohm

color black, other color available

black anti-static box for pcb or electronic components storage.

ESD Box Features:

1. electronic class, eco-friendly;

2. anti-static;

3. Thickness: according to your requirement;

4. Color: support customize;

5. wide range of sizes ,colors and formats;

6. light ,soft and resistant;

7. accept custom design order

size：
