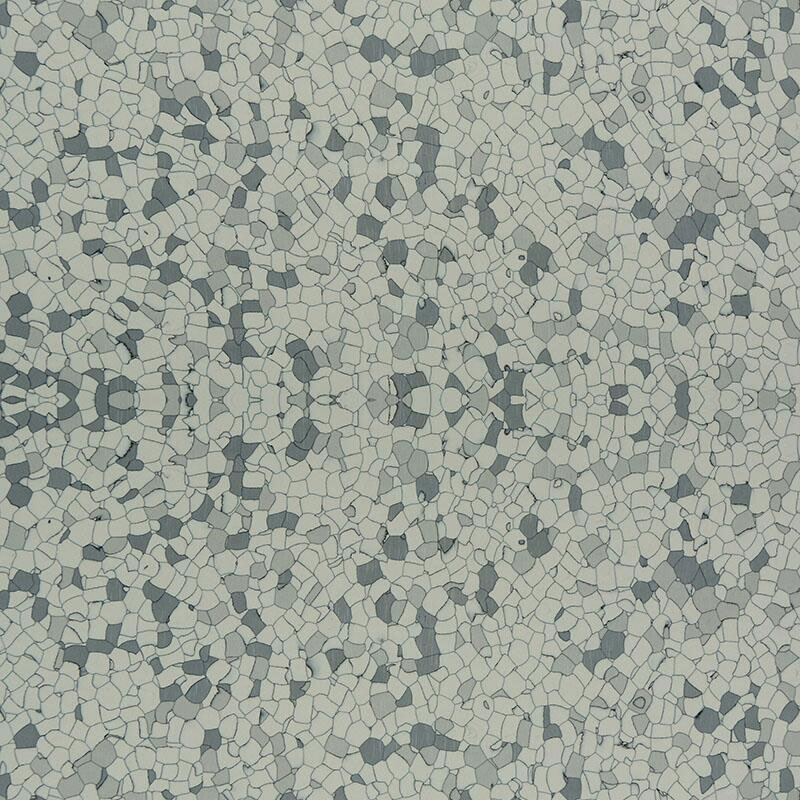

Anti-static Flooring Mat ESD PVC Flooring Tiles For Static-sensitive Working Place Safety

  • LN-1101
  • LEENOL
Availability:
Quantity:
Spare Part
Item
Standards
Conductive floor
Dissipative floor
Thickness
EN428
2.0mm 2.5mm 3.0mm
Size
EN426
600*600mm/900*900mm
600*600mm/900*900mm
Weight
EN430
2 0mm-3 8kg/m2;2.5mm-4.8kg/m2; 3.0mm-5 8kg/m2
Electric Properties
DIN511953 ASTMF150 OR NFPA99
2.5*10e4-10e6 ohm
10e6-10e9 ohm
DecayTime
SJ/Tf0694. 2006(1000V +/-100V<= 2s)
Equal 0.4s
Equal 0.4s
Charge Voltage
SJ/T10694-2006(V<100V)
Equal 70
Equal 70
Combustion Properties
SJ/T11236-2001 (<10s)
Equal 0.35SFV-0
Equal 0.35S FV-0
Fire Resistance
GRADE DIN4102
B1
B1
Wheel Pressure
EN425
No Influence
No Influence
Amount of anti-wear
SJ/T11236-2001(<=0.020g/cm2 1000R)
Equal 0.014
Equal 0.014
Anti-wear Properties
EN660PT2
ITEN-T<2.0 mm 3
ITEN-T<2.0 mm 3
Residual Concavity
EN433/DIN51955
0.03mm (2.0mm)
0.035mm (2.5mm)
0.04mm (3.0mm)

0.03mm (2.0mm)

 0.035mm (2.5mm)

 0.04mm (3.0mm)

Color Fastness
ISO105BO2
At least 6
At least 6
Dimensional Stability
EN434
>=0.10%
>=0.10%
Resistance to chemicals
DIN423/DIN51958
Offers excellent resistance ask for special sheet
Offers excellent resistance ask for special sheet
Impact sound absorption
VLI,ISO104,ISO717
Approx 2dB
Approx 2dB

Product Description
Previous:
Next:
LEENOL is an "ESD TOTAL SOLUTION" company to fulfill ESD requirements for factories and labs. LEENOL's product range covers LeeRackTM Handling Storage ESD Equipments, LeePakTM Packing Material, LeeBenchTM Factory and Lab Furniture.
