LN-1591403
LEENOL
| Quantity: | |
|---|---|

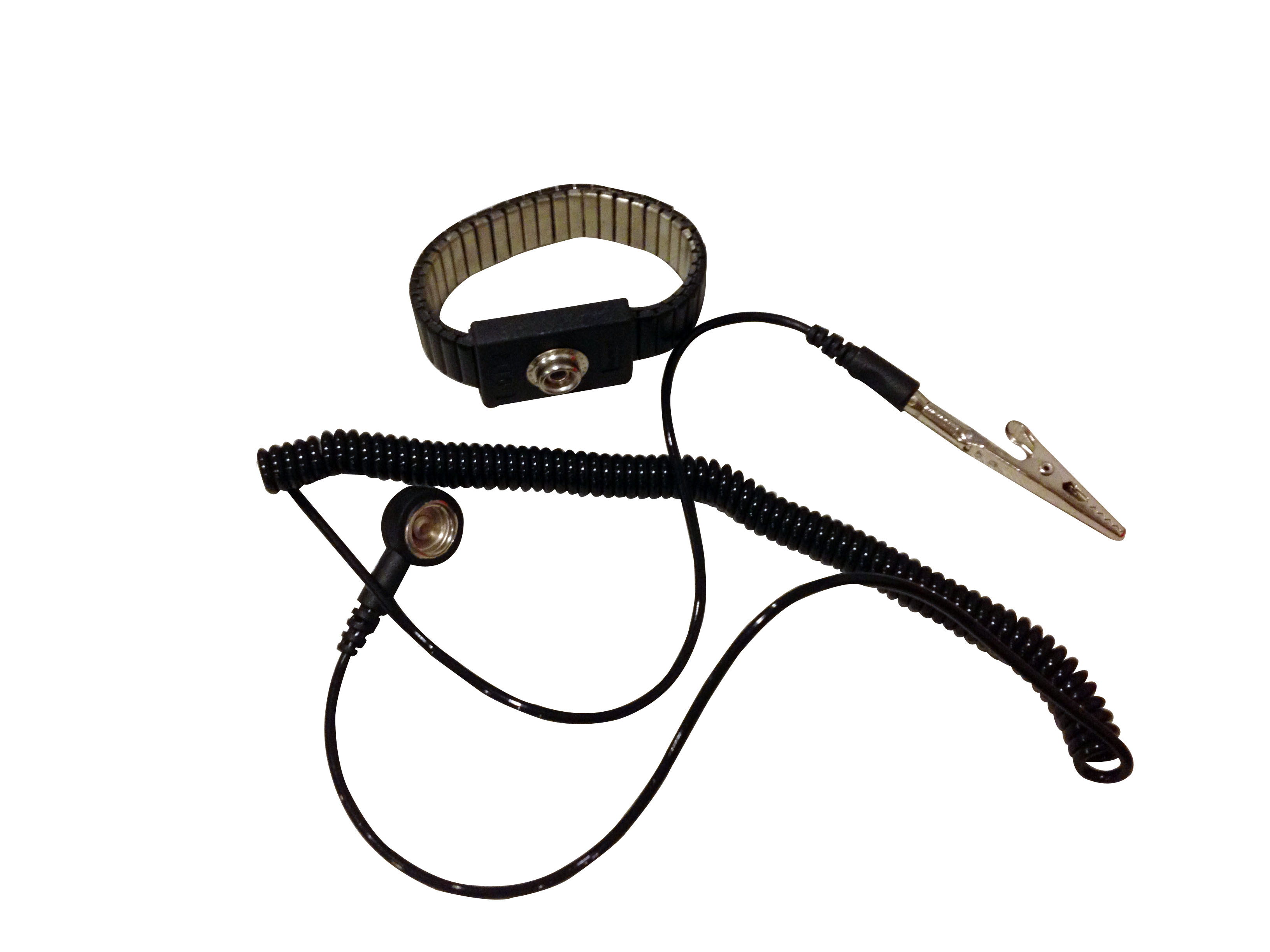

ESD wired wrist strap is the most basic of anti-static equipment, is also the most widely used in the production line is necessary article, not only on the construction and operation is very convenient, the price is also the most economical and practical, its reason is through the wrist strap and ground wire, to human body electrostatic discharge to the earth, so use wristbands necessary really contact with the skin, also need direct grounding earth wire, and ensure the grounding line unimpeded to maximum effect. The cool, smooth touch of the metallic backplate rests comfortably against the operator's wrist, ensuring uninterrupted conductivity without causing irritation during long shifts. By adhering to international standards like ANSI/ESD S20.20, this protective gear guarantees reliable performance for high-precision electronic assembly tasks, providing an indispensable line of defense for delicate microelectronics against catastrophic static events.
ESD Wired Wrist Strap always be used to prevent electrostatic discharge by safely grounding a person working with electronic equipments or at an electronic assembly facility. Beyond basic assembly benches, these grounding devices are vital in cleanrooms, semiconductor fabrication plants, and hardware repair stations where even a microscopic static shock can permanently damage integrated circuits. When an operator secures the band around their wrist, the system creates a continuous, secure pathway for static electricity to drain safely away from sensitive components. Furthermore, the universal connectors on these straps allow them to integrate effortlessly with existing anti-static table mats, dedicated grounding sockets, and continuous online monitoring systems. This adaptability ensures that workers remain fully protected whether they are stationary at a soldering station or moving within a designated static-safe zone, ultimately reducing defect rates and improving overall operational yield.
Understanding the technical parameters is crucial for ensuring proper workplace protection. Here is the detailed breakdown of the core specifications:
1. Charge decay < 0.1 Sec: This rapid dissipation rate guarantees that any accumulated static is instantly neutralized before it can arc to nearby sensitive microchips.
2. Adjustable wristband in blur,black,brown : Offering multiple visual options allows facility managers to color-code different departments or production lines for easier visual compliance checks.
3. Comfortable wristband with 10mm snap: The standard connection point provides a firm, tactile click, assuring the user that the grounding cord is securely fastened.
4. 1 Meg Ohm resistor for added safety: This critical built-in component restricts the flow of electrical current, protecting the wearer from accidental shocks if they inadvertently touch a live circuit.
5. Sets with 6' or 10' coil cord: These length variations provide ample reach, allowing operators to move comfortably across large workbenches without feeling tethered or restricted.
6. Two snaps : The dual-snap design offers redundancy and versatility in how the cord is oriented during complex assembly tasks.
The physical construction of the wearable component dictates both its efficacy and wearer compliance over long shifts.
1. Fabric: elastic band with Stainless steel fiber mixed. This hypoallergenic blend feels soft against the skin while maintaining excellent conductivity, preventing the itching or discomfort often associated with prolonged wear.
2. Back plate: Stainless steel. The smooth, polished metal delivers a cool tactile sensation and ensures a consistent electrical connection.
3. Contact: 360 degrees around wrist. This comprehensive coverage eliminates any blind spots, ensuring static drains reliably regardless of how the arm is positioned.
4. Adjustment: simply adjust, adjustable to fit any wrist size. The intuitive sliding mechanism allows operators to find a snug, secure fit in seconds.
5. Snap size: 10mm. A universally compatible connection point for standard grounding cords.
6. Resistance: 100~200 ohm. Strictly controlled internal resistance for optimal static drainage.
7. Outer surface: insulative. The exterior layer protects the wearer from external stray currents, adding an extra dimension of operational safety.
The grounding wire is engineered to withstand the rigorous demands of active industrial environments while maintaining a secure connection.
1. 1 MΩ safety resistor in the snap. This hidden safeguard is essential for operator well-being, acting as a buffer against unexpected electrical surges.
2. Excellent strain relief connection. The molded joints are designed to absorb the mechanical stress of constant pulling, bending, and twisting, significantly extending the lifespan of the cord.
3. PU cord and 7-stand tinsel wire. The outer polyurethane jacket offers a high-rebound, snappy elasticity, while the internal copper foil wire ensures maximum flexibility and unbreakable conductivity.
4. Cord outer diameter:2.2mm. A perfectly balanced thickness that remains lightweight yet highly durable against accidental pinches or scrapes.
5. Snap release: 5pounds. This precise tension calibration means the cord stays firmly attached during normal movements but will safely break away if snagged, preventing injury.
6. Color: light blue,black, brown. These distinct color options help in organizing and identifying different grounding tools across the facility.
As a direct source factory, we understand that different manufacturing environments require tailored static protection strategies. We offer flexible configuration options to align with your specific operational layouts and procurement schedules. Whether your facility needs the extended reach of the 10-foot cables for large equipment assembly, or the standard 6-foot versions for compact soldering stations, our production lines can accommodate your exact requirements. The ability to select specific cord colors also aids in implementing visual management across the factory floor. By sourcing directly from the manufacturer, enterprises benefit from highly cost-effective bulk procurement solutions without sacrificing the stringent performance metrics required for sensitive electronics handling. We are committed to delivering reliable, compliant, and durable grounding accessories that support the continuous, safe operation of your entire production ecosystem.
