Can An ESD Wrist Strap Protect Against High Voltage Electrical Shocks?​

Have you ever puzzled whether or not an ESD (Electrostatic Discharge) wrist strap can shield you from excessive voltage electrical shocks? Many humans companion ESD wrist straps with safeguarding touchy electronics from static electricity, however does it provide any safety in high-voltage environments?

In this article, we’ll discover the performance of ESD wrist straps, how they work, and whether or not they can forestall extreme electrical shocks from sources like mains voltage. You’ll research why they are crucial for defending touchy tools however no longer always your physique from electrical harm.

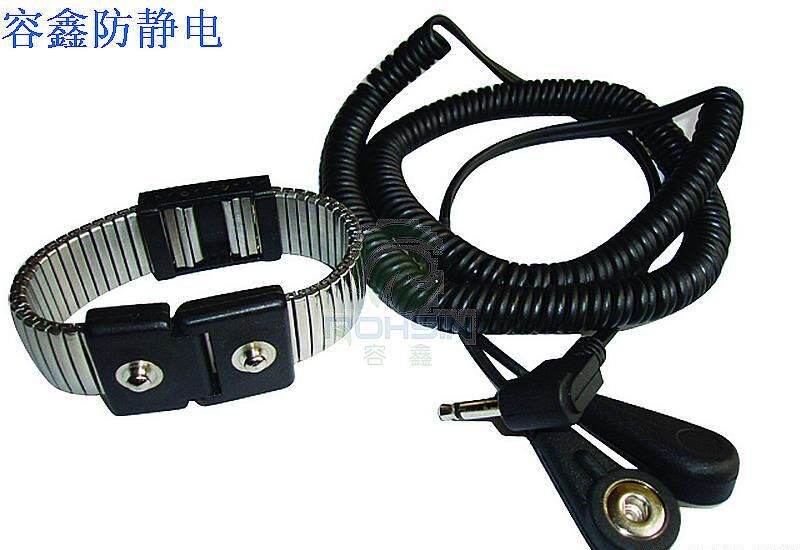

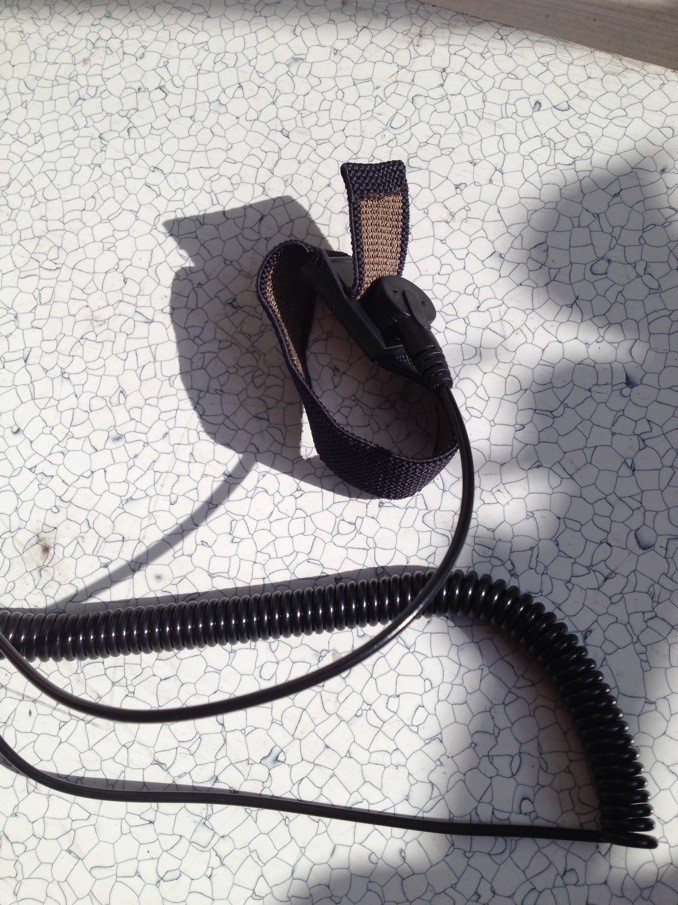

What is an ESD Wrist Strap?

An ESD wrist strap is a system frequently used in electronics environments to forestall electrostatic discharge (ESD) from adverse touchy components. These wrist straps are generally worn around the wrist and related to a grounded object. The essential reason is to dissipate any static cost that has constructed up on your physique and direct it safely to the ground, instead than permitting it to discharge onto touchy equipment, such as circuit boards.

While these wrist straps are fundamental in environments the place static electrical energy should injury digital components, they are now not designed to defend human beings from high-voltage electrical shocks.

How Do ESD Wrist Straps Work?

ESD wrist straps have a easy but advantageous mechanism. The strap is connected to your wrist with conductive cloth that ensures any cost accrued on your physique is safely transferred to a grounded point. This is normally a metallic connection factor connected to the grounding device of the constructing or equipment.

The wrist strap generally carries a 1 megaohm resistor to restriction the modern-day that ought to waft thru it, making sure that it won’t damage the wearer in the match of a unexpected discharge. The key reason of this resistor is to permit a gradual discharge of static electricity, alternatively than growing a sudden, detrimental float of current.

However, when it comes to excessive voltage electrical shocks—such as these from mains electricity (220V or 110V)—ESD wrist straps are no longer designed to provide protection. These straps are no longer geared up to take care of massive currents or forestall the life-threatening outcomes of high-voltage electricity.

Can ESD Wrist Straps Protect You from High Voltage Shocks?

Although ESD wrist straps are effective in preventing static damage to electronics, their design does not extend to protecting humans from high-voltage shocks. Here's why:

1.  Voltage vs. Static Electricity: ESD wrist straps are designed for low-voltage static electricity, which is now not unsafe to humans. The quantity of strength discharged via static electrical energy is negligible in contrast to the high-voltage surges current in electrical shocks from mains power. These wrist straps are supposed to floor static charges, now not to act as non-public shielding tools in opposition to high-voltage electrical hazards.

2.  Current Limitation: The 1 megaohm resistor used in ESD wrist straps limits the current that can flow through the strap. This is adequate to prevent harm from static electricity, but it is not sufficient to protect you if you come in contact with high-voltage electricity. The resistor in an ESD strap would not prevent fatal currents from flowing through the body in the event of a shock.

3.  Grounding Safety: High-voltage electrical systems require a proper grounding system designed to handle large currents safely. ESD wrist straps are not integrated with the kind of high-current safety protocols needed to protect against electrocution. If you are concerned about high-voltage electricity, consulting with a qualified electrician and using the correct protective gear like rubber gloves, insulated tools, and circuit breakers is essential.

What Should You Use for Protection Against High Voltage?

To protect yourself from high-voltage electrical shocks, here are the necessary safety measures:

1.  Proper Grounding: Ensure that your workspace and equipment are correctly grounded. Electrical circuits and machinery should have safety ground connections to divert electrical faults away from users.

2.  Insulation: Use insulated gloves, mats, and tools designed to handle high voltages safely. These prevent any electrical contact that could lead to a fatal shock.

3.  Circuit Protection: Install fuses, circuit breakers, and ground-fault circuit interrupters (GFCIs) to cut off the power in case of a fault, protecting you from harmful electrical shocks.

Common Misconceptions About ESD Wrist Straps

Misconception 1: ESD Wrist Straps Protect from High-Voltage Shocks

As we've got discussed, ESD wrist straps are solely superb towards static electricity, now not high-voltage electrical systems. Relying on an ESD wrist strap for safety in opposition to high-voltage is a risky mistake.

Misconception 2: ESD Wrist Straps Don’t Need to Be Tested

For most efficiency, ESD wrist straps have to be normally examined to make sure they’re nevertheless functioning correctly. Over time, the grounding aspects or resistance may also put on down, making the strap ineffective. Routine trying out is indispensable in electronics environments.

Misconception 3: ESD Wrist Straps Work Immediately Without Risk

It’s necessary to take into account that a wrist strap have to be right linked to a grounded floor for it to work effectively. If the strap is improperly grounded, or the resistor is malfunctioning, it can’t guard in opposition to static discharge, let by myself high-voltage shocks.

Summary

In conclusion, ESD wrist straps are indispensable for defending electronic aspects from static discharge, however they do now not defend customers from high-voltage electrical shocks. These straps are designed to deal with low-voltage, innocent static electricity, now not the good sized currents that come with electrical shocks from mains voltage. To make sure your security in high-voltage environments, usually use the proper personal protective equipment (PPE) and seek advice from a certified electrician when dealing with electrical hazards.

For these in want of top notch ESD wrist straps, LEENOL provides an extremely good vary of merchandise that can stop static harm to touchy equipment. Visit LEENOL’s website today to explore the perfect solution for your electronic safety needs!

FAQ

Q: What is the purpose of the resistor in an ESD wrist strap?

A: The resistor limits the flow of current through the wrist strap, ensuring a safe and gradual discharge of static electricity to the ground.

Q: Can an ESD wrist strap protect me from electrocution?

A: No, ESD wrist straps are not designed to protect against high-voltage electrocution. They are only meant to prevent static discharge from damaging electronic components.

Q: How often should I test my ESD wrist strap?

A: It's recommended to test your ESD wrist strap regularly to ensure it remains in good working condition and is properly grounded.

Q: What should I use to protect myself from high-voltage shocks?

A: Use proper insulated gloves, grounding systems, and circuit breakers to protect yourself from high-voltage electrical hazards.

Q: Can I use an ESD wrist strap in an electrical maintenance environment?

A: While it can protect you from static discharge, it will not provide safety against high-voltage electrical shocks. Always use appropriate PPE for electrical work.
