At first glance, ESD clothing does not look very different from ordinary factory workwear. Both may come in the form of coats, jackets, shirts, trousers, or coveralls. They may even use similar colors and follow the same general uniform style.
The real difference is not mainly about appearance. It is about how the garment behaves when static electricity is generated.
Regular workwear is usually selected for comfort, durability, cleanliness, identification, or protection from everyday workplace dirt. ESD clothing has an additional purpose: it helps control electrostatic charge around workers who handle static-sensitive products.
That difference becomes important in electronics assembly, semiconductor manufacturing, PCB production, laboratories, cleanrooms, and other electrostatic protected areas. A standard uniform may look suitable for the environment while still allowing charge to build up on its surface. Properly designed ESD garments use conductive materials and controlled construction to reduce that risk.
Regular workwear is a broad category. It includes factory uniforms, maintenance jackets, warehouse clothing, laboratory coats, overalls, and other garments worn during daily operations.
The main requirements normally include:
Comfort during a full working shift
Resistance to tearing and abrasion
Ease of washing
Suitable coverage
Company identification
Protection from dust or light contamination
A consistent professional appearance
Depending on the job, regular workwear may also provide flame resistance, water resistance, chemical splash protection, or high visibility. These are useful properties, but they do not automatically make a garment suitable for an ESD-controlled area.
A polyester factory coat, for example, may be durable and easy to clean. However, movement between the coat and the worker’s inner clothing can generate electrostatic charge. Because ordinary polyester is relatively insulating, that charge may remain on the garment instead of moving away through a controlled path.

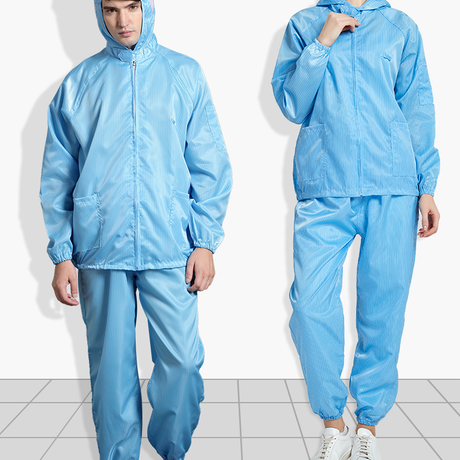

ESD clothing is made to limit the effect of electrostatic charge generated by the wearer and the clothing underneath.
The EOS/ESD Association explains that clothing is often electrically isolated from the body. As a result, charge held on a garment is not necessarily dissipated through the wearer’s skin or personnel-grounding equipment. Protective outer garments may therefore be required when ordinary clothing creates an unacceptable electrostatic risk.
ESD clothing is commonly manufactured from polyester or polyester-cotton fabric containing conductive fibers. These fibers may contain carbon, stainless steel, or another conductive material. They are woven into the fabric as stripes or a grid.
The conductive structure helps charge spread across the garment instead of remaining concentrated in one area. Depending on the design, the charge may then dissipate gradually or move toward a designated grounding connection.
ESD clothing may include:
ESD smocks
Anti-static coats
ESD jackets
ESD shirts
ESD trousers
ESD coveralls
Cleanroom garments
ESD caps and hoods
LEENOL’s ESD clothing range includes shirts, coats, jackets, coveralls, and related workwear designed for electronics production, cleanrooms, laboratories, and other static-sensitive workplaces.
The most important distinction between ESD clothing and regular workwear is usually found inside the textile.
Standard workwear often uses:
Polyester
Cotton
Polyester-cotton blends
Nylon
Canvas
Twill
Other conventional textile materials
These fabrics are selected according to strength, weight, breathability, cost, and washing requirements. Unless a conductive component has been added, they may have high electrical resistance.
Cotton can absorb moisture and may behave differently from polyester under humid conditions, but ordinary cotton clothing should not be assumed to provide verified ESD protection. Its electrical properties can change with humidity, contamination, and washing.
ESD clothing uses fabric containing conductive yarn or conductive fibers. Thin carbon-based filaments are commonly woven through the base textile.
The conductive lines may appear as:
A square grid
Vertical stripes
Horizontal stripes
A diamond-shaped pattern
A less visible conductive network
These lines form electrical paths through the material. When static charge reaches the fabric, it can spread through the conductive network rather than remaining on an isolated section of the garment.
Regular workwear may use a similar base fabric, but without these conductive paths it does not perform the same function.
Workers do not usually wear ESD garments directly against the skin. A shirt, sweater, or other personal clothing may be worn underneath.
These inner garments can generate static charge as the worker moves. An ESD coat or smock helps cover them and reduce their direct electrostatic influence on the working area.
Coverage matters here. Leaving the front of a coat open, rolling up the sleeves, or allowing a large section of ordinary clothing to remain exposed may reduce the garment’s effectiveness.
An ESD garment should generally:
Cover the worker’s inner clothing
Remain fastened while inside the protected area
Fit without excessive looseness or tension
Keep sleeves and cuffs in the correct position
Maintain continuity between its conductive panels
Regular workwear may provide physical coverage, but it is not specifically designed to contain the electrostatic fields produced by the clothing underneath.
Using ESD fabric does not automatically produce an effective ESD garment.
A coat consists of several pieces of fabric joined together. The back, front panels, sleeves, collar, pockets, and cuffs all form part of the finished structure. Electrical continuity should be maintained between the relevant areas.
If conductive fabric panels are joined in a way that interrupts the conductive network, one part of the garment may become electrically isolated from another.
ESD clothing manufacturers may use conductive sewing thread, suitable seam construction, conductive cuffs, or grounding snaps to maintain continuity.
Regular factory uniforms are not normally designed with this requirement in mind. Their seams are judged mainly by mechanical strength and appearance.
Cuffs are subject to repeated bending, friction, and washing. They may also form part of a groundable garment system.
Some ESD garments use conductive knitted cuffs that maintain contact with the wearer. Others are designed mainly to contain charge without using the cuff as a direct grounding point.
The correct design depends on how the garment is intended to work. A conductive cuff should not be assumed to replace a wrist strap unless the complete system is designed, tested, and documented for that purpose.
When garments are used for personnel grounding, the arrangement should be included in the facility’s ESD control program and meet the applicable system requirements.
 |  |  |
Regular workwear is commonly tested for properties such as fabric strength, colorfastness, shrinkage, seam strength, and wash durability.
ESD clothing requires additional electrical evaluation.
IEC 61340-4-9:2024 provides methods for measuring the electrical resistance of garments used for static-control applications. The methods cover conductive or dissipative outer garments and garments containing surface-conductive or surface-dissipative components.
Depending on the garment and its intended use, testing may examine:
Point-to-point resistance
Sleeve-to-sleeve resistance
Panel-to-panel continuity
Resistance to a groundable point
Complete garment-system resistance
Performance after repeated laundering
A normal uniform does not usually come with this type of electrical-performance data.
This is why visual similarity can be misleading. Two coats may have the same color, weight, and cut, but only one may have a verified conductive network and suitable resistance characteristics.
The term “protective clothing” covers many different hazards. A garment may protect against heat, chemicals, moving traffic, dust, biological contamination, or electrostatic charge.
These functions are not interchangeable.
ESD clothing is primarily used to protect static-sensitive products and processes. It should not automatically be treated as:
Arc-flash protection
Flame-resistant clothing
Chemical protective clothing
Insulating electrical PPE
High-temperature workwear
In some environments, several protective functions are required at the same time. The garment must then be selected according to all relevant hazards.
For example, an electronics facility with a flammable atmosphere may require clothing that controls static electricity and also meets additional safety requirements. A standard ESD coat should not be assumed to provide those additional protections unless it has been designed and certified accordingly.

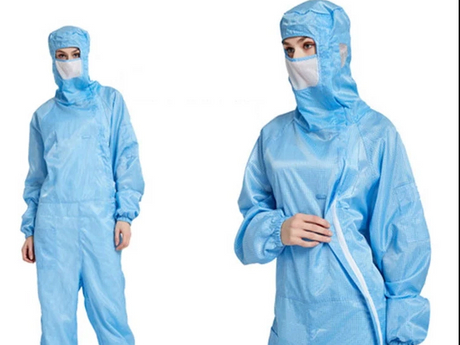

ESD clothing and cleanroom clothing are related, but the terms do not describe exactly the same function.
Cleanroom garments are intended to control particles, fibers, skin flakes, and other contamination released by workers. ESD garments are intended to control electrostatic charge.
A garment may provide one function or both.
For semiconductor, pharmaceutical, electronics, and precision manufacturing environments, a cleanroom garment may use low-lint polyester fabric together with conductive yarn. This allows it to support particle control and static control at the same time.
A regular work coat may be unsuitable because it can release lint, expose personal clothing, or generate static electricity during movement.
When selecting cleanroom ESD clothing, buyers should consider:
Cleanroom classification
Particle-shedding requirements
Conductive-fiber arrangement
Garment coverage
Closure design
Cuff and hood construction
Sterilization or washing method
Required resistance range
Regular uniforms are often washed according to appearance and hygiene needs. The laundry provider may use strong detergent, fabric softener, bleach, stain remover, or high-temperature drying.
Those methods may be unsuitable for ESD garments.
Fabric softener can leave a coating on conductive fibers. Bleach and aggressive chemicals may damage the fibers or affect textile treatments. High drying temperatures can accelerate wear, shrinkage, and seam deterioration.
ESD clothing should normally have a documented washing procedure covering:
Approved detergent
Prohibited additives
Washing temperature
Rinse requirements
Drying temperature
Inspection frequency
Post-wash electrical testing
A garment may still look clean and presentable after many wash cycles while its electrical performance has changed. For ESD workwear, cleanliness and appearance are not enough to confirm continued use.
Not every factory worker needs ESD clothing.
Regular workwear may be acceptable where employees do not handle electrostatic-sensitive devices and where static charge does not present a meaningful process risk.
Examples may include general warehousing, administrative areas, conventional packaging operations, and some mechanical assembly tasks.
The decision should be based on an ESD risk assessment rather than applying the same clothing rule throughout the entire facility.
Inside an electrostatic protected area, the company should evaluate:
The sensitivity of the products being handled
The charging tendency of ordinary clothing
The distance between workers and exposed components
The effectiveness of other ESD controls
Environmental conditions
Customer or industry requirements
ANSI/ESD S20.20 provides a framework for developing an ESD control program that can include personnel grounding, flooring, seating, packaging, and other control measures. Clothing should be considered as one part of that coordinated system.
The first question should not be which garment looks better or costs less. It should be whether the work involves products or processes that can be affected by electrostatic discharge.
Where ESD clothing is required, buyers should review:
Confirm the base fiber, conductive-fiber type, conductive-yarn percentage, and grid or stripe spacing.
Ask for resistance information, the test method used, and any relevant garment-level results.
The garment should cover ordinary clothing without restricting movement or creating excessive strain at seams.
Consider whether the garment is intended for a general electronics workshop, cleanroom, laboratory, inspection room, or another controlled area.
Determine whether the garment is intended only to contain charge or operate as part of a groundable garment system.
Check the recommended washing process and whether performance has been evaluated after repeated wash cycles.
Color, logo, pocket arrangement, closures, fabric weight, size range, and cleanroom design may all need to match the customer’s production requirements.
One common mistake is assuming that any polyester coat is anti-static. Polyester is widely used as the base material for ESD clothing, but it only becomes suitable when the required conductive structure is added and verified.
Another misunderstanding is that an ESD garment replaces all other grounding controls. In most facilities, clothing works alongside wrist straps, ESD footwear, flooring, grounded workstations, ionizers, and suitable packaging.
It is also incorrect to assume that every garment labeled “anti-static” offers the same level of performance. The term may refer to a temporary surface treatment, a humidity-dependent material, or a permanently integrated conductive grid.
The product specification and test data matter more than the label alone.
Regular workwear is designed mainly for durability, comfort, cleanliness, and workplace identification. ESD clothing must provide those practical qualities while also controlling electrostatic charge.
The difference comes from conductive fabric, carbon or metal-containing yarn, garment continuity, controlled seams, suitable coverage, electrical testing, and appropriate maintenance.
A standard uniform may be sufficient in a low-risk area. In electronics assembly, semiconductor manufacturing, PCB handling, laboratories, and cleanrooms, verified ESD clothing can become an important part of the overall static-control program.
LEENOL supplies ESD clothing, conductive fabric, cleanroom garments, ESD shoes, gloves, grounding products, workbenches, storage equipment, and protective packaging for static-sensitive production environments. Customers can select different garment styles, fabrics, conductive-grid patterns, colors, sizes, and customization options according to their workplace conditions and ESD management requirements.
No. Polyester alone does not make a garment ESD-safe. Suitable ESD clothing normally contains conductive fibers or yarns that form controlled electrical paths through the fabric. The finished garment should also have appropriate construction and verified electrical-performance data.
Not in most situations. ESD clothing usually works alongside personnel-grounding devices such as wrist straps or footwear-and-flooring systems. A garment should only serve as part of the grounding path when it has been specifically designed, tested, and documented for that purpose.
Common constructions include polyester or polyester-cotton fabric woven with carbon-containing fibers, stainless-steel fibers, metal-coated yarn, or other conductive materials. The conductive elements are often arranged in a stripe or grid pattern.
It should follow a controlled washing procedure. Fabric softener, bleach, strong detergents, and excessive heat may affect the conductive material or garment construction. Buyers should follow the manufacturer’s care instructions and perform periodic inspection or testing.
Review the fabric composition, conductive structure, intended application, garment design, electrical-resistance data, test method, grounding arrangement, and laundering requirements. A garment should not be selected only because it is described as “anti-static.”
