Static electricity is a dangerous variable in industrial environments. Uncontrolled static causes catastrophic explosions in volatile areas and latent damage to microelectronics. Facility managers and safety officers often confuse terms like anti-static, conductive, and ESD. Selecting the wrong footwear profile for your specific environmental hazard creates massive liabilities. It leaves sensitive components vulnerable and exposes workers to fatal electrical shock.
Determining which footwear is safer requires abandoning universal safety claims. You must evaluate the exact electrical resistance ranges required for your facility. You also need to assess floor system integrations and specific hazard profiles. An explosive manufacturing plant requires entirely different protection than a semiconductor cleanroom. You must match the shoe to the exact physical and electrical threats present on your floor.
Safety is Contextual: Conductive shoes are safest for preventing sparks in highly explosive environments but pose a lethal risk if the wearer contacts live voltage.
Controlled Dissipation: ESD shoes provide a controlled release of static electricity, protecting sensitive electronics while offering a slight buffer against accidental electrical shock compared to conductive footwear.
System Dependency: Neither shoe type functions effectively without a properly grounded, compatible flooring system and appropriate environmental controls (like humidity).
Compliance Overlap: True safety requires matching the footwear’s megohm rating to strict industry standards (e.g., ANSI/ESD S20.20 for electronics or ASTM F2413 for safety footwear).
Electrical resistance dictates the classification of all safety footwear. We measure this resistance in Ohms. The lower the ohmic value, the faster electricity travels through the material. Conductive materials offer almost no resistance. Insulating materials block electrical flow entirely. Static-dissipating materials sit right in the middle. They allow electricity to flow, but at a heavily reduced speed. Understanding this spectrum is the only way to protect your workers and your products.
Many facilities fall into the trap of anti-static ambiguity. Anti-static is a broad marketing term. It is often unregulated. The resistance range usually falls anywhere between 10^5 to 10^9 ohms. This massive variance means a generic anti-static shoe might dissipate charge too slowly for a microelectronics lab. It might also dissipate charge too quickly, risking a shock hazard. Relying on generic labels is insufficient for strict compliance environments. You need precise ohmic ratings certified by third-party testing.
Footwear Classification | Typical Resistance Range (Ohms) | Primary Function | Shock Hazard Risk |
|---|---|---|---|
Conductive | 0 to 500,000 (< 0.5 Megohm) | Instant static discharge to ground | Extremely High |
Static Dissipative (ESD) | 1,000,000 to 100,000,000 (1 to 100 Megohms) | Controlled, slow static bleed | Moderate to Low |
Anti-Static (Generic) | 100,000 to 1,000,000,000 (Highly Variable) | General static reduction | Unpredictable |
Electrical Hazard (EH) | > 1,000,000,000 (Insulator) | Block electrical flow completely | Zero (Protects against shock) |
You must also understand the Electrical Hazard (EH) distinction. Neither ESD nor conductive shoes are EH-rated. EH footwear serves the exact opposite function of static-dissipating shoes. EH shoes are insulators. They are designed to stop the flow of electricity entirely. Workers wear them to protect against high voltage and live circuits. If you wear an EH shoe in a static-sensitive environment, you will accumulate a massive static charge. You will eventually discharge that static into a sensitive component or a flammable vapor.
Environmental humidity plays a massive role in electrical resistance. Ambient moisture acts as a natural conductor. Dry environments drastically increase static generation. They also increase the electrical resistance of your footwear and flooring. A shoe that passes testing at 60% relative humidity might fail completely at 20% relative humidity. This makes the precise ohmic rating of your footwear critical during dry winter months or inside climate-controlled cleanrooms.
High humidity (above 50% RH) naturally coats surfaces with microscopic moisture, aiding in static dissipation.
Low humidity (below 30% RH) strips moisture from the air, turning marginally compliant shoes into insulators.
HVAC systems in winter months pull moisture from the facility, requiring stricter footwear testing protocols.
Conductive shoes offer zero electrical resistance. Their technical specifications typically range from 0 to 500,000 ohms. This is less than 0.5 Megohms. Because they lack resistance, they push static electricity directly into the grounded floor instantly. The moment a worker generates a charge, the shoe eliminates it. There is no controlled bleed. The discharge is immediate and absolute.
This rapid discharge is non-negotiable in highly volatile environments. Conductive shoes are mandatory in munitions manufacturing. They are critical for volatile chemical handling and highly flammable dust environments. In a grain silo or a solvent-heavy paint plant, a single static spark can ignite the atmosphere. Conductive footwear ensures that a spark never has the chance to form. The wearer remains at a zero-voltage potential at all times.
Explosives manufacturing and handling facilities.
Pharmaceutical plants processing fine, combustible powders.
Petrochemical refineries with open solvent exposure.
Aerospace facilities handling highly volatile rocket propellants.
However, this maximum discharge mechanism carries a fatal flaw. Conductive shoes present a severe danger near live electrical circuits. Because the shoe offers zero resistance, it turns the human body into a perfect conduit. If a worker wearing conductive shoes touches a live wire, the electricity travels instantly through their body to the ground. This results in severe or fatal electrical shock. You must never permit conductive footwear in areas where workers interact with open, energized electrical equipment.
Facility managers must strictly enforce zoning when deploying conductive footwear. A worker cannot wear conductive shoes in the chemical mixing room and then walk into the electrical maintenance shop. The risk profile flips entirely. You must implement hard physical barriers or mandatory shoe-change stations between these zones to prevent fatal accidents.
ESD shoes operate on the principle of controlled dissipation. Their resistance typically ranges from 1 Megohm to 100 Megohms. They do not dump static into the ground instantly. Instead, they bleed the static electricity slowly. This controlled release prevents sparks from forming. It also prevents dangerous charge buildup on the human body. The resistance is high enough to slow the current, but low enough to maintain a safe electrical ground.
You must decode ASTM SD ratings to ensure proper compliance. The ASTM standards break static dissipative footwear into specific sub-categories. SD 100 footwear offers a resistance range of 1 to 100 megohms. This is suitable for general electronics handling. SD 35 footwear offers a tighter range of 1 to 35 megohms. Facilities handling ultra-sensitive microprocessors often require SD 35 ratings. Knowing the difference ensures you meet the exact threshold required by your quality control department.
The primary use cases for controlled dissipation center around product protection. Semiconductor manufacturing relies heavily on this footwear. Electronics assembly lines and medical device production facilities also mandate them. In these environments, a 100-volt static discharge is imperceptible to a human. However, that same 100 volts will instantly destroy a sensitive microchip. Controlled dissipation ensures the worker never accumulates enough charge to cause this latent damage.
Modern manufacturing often requires dual-protection footwear. Workers need static control, but they also face physical hazards like dropped tools or heavy machinery. Integrating physical safety features is critical. You can deploy ESD safety toe shoes to solve this problem. These shoes utilize composite or alloy toes. They maintain strict electrical compliance while meeting heavy drop and crush standards. They achieve this without adding the conductive metal risks associated with traditional steel-toe boots.

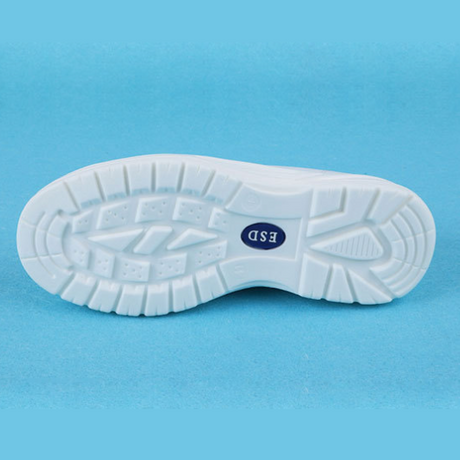

The construction of an ESD shoe involves specific material engineering. Manufacturers inject conductive threads or carbon particles directly into the polyurethane or rubber outsole. They also design the insole with conductive stitching that connects the bottom of the foot to the midsole. This creates a continuous electrical pathway. If any part of this pathway breaks down, the shoe loses its dissipative properties.
Evaluating safety requires matching the footwear feature to the specific operational outcome. You must look at how each shoe performs against explosive ignition, component damage, and accidental shock. Relying on assumptions leads to compliance failures and safety incidents.
Safety Parameter | Conductive Footwear Performance | ESD Footwear Performance |
|---|---|---|
Explosive Ignition Prevention | Superior. Zero static accumulation allowed. | Adequate for general use, but potentially too slow for extreme volatile zones. |
Sensitive Component Protection | Overkill. Can pose risks near powered testing rigs. | Optimal. Meets strict ANSI/ESD S20.20 standards. |
Accidental Shock Mitigation | Highly Dangerous. Acts as a direct conduit to ground. | Safer. Megohm resistance provides a small buffer against low-voltage shocks. |
Durability and Lifespan | Shorter. Highly conductive materials degrade faster under chemical exposure. | Longer. Polyurethane outsoles resist wear, though require strict cleaning. |
Conductive footwear is superior for explosive environments. It leaves absolutely zero room for static accumulation. The risk of a spark is entirely neutralized. ESD footwear is sufficient for general manufacturing. However, it is potentially too slow at dissipating charge in extreme environments. If a worker moves quickly in a highly volatile chemical powder environment, an ESD shoe might allow a brief, dangerous charge buildup before the resistance allows it to bleed off.
Conductive footwear is overkill for electronics assembly. It is also potentially dangerous if workers interact with powered testing equipment. ESD footwear is optimal here. It meets the strict ANSI/ESD S20.20 standards required for handling sensitive micro-components. It bleeds the charge safely without exposing the worker to unnecessary electrical risks during equipment testing.
Conductive footwear is highly dangerous regarding accidental shock. It provides a direct path to ground, maximizing the severity of any electrical contact. ESD footwear is safer than conductive options in this scenario. The higher resistance provides a small margin of safety if accidental contact with low-voltage equipment occurs. A 120V or 240V shock will be mitigated slightly by the megohm resistance. However, you must remember that static dissipative shoes are never a substitute for proper lockout/tagout procedures or dedicated EH footwear.
Conductive shoes often require more frequent replacement. The highly conductive materials injected into the soles can degrade quickly. Facility contaminants like oil, grease, or chemical spills easily compromise their zero-resistance properties. ESD footwear generally offers a longer functional lifespan. The dissipative polyurethane or rubber outsoles are robust. However, they still require strict daily maintenance and cleaning to preserve your initial investment.
Choosing the right safety footwear requires a systematic approach. You cannot guess based on catalog descriptions. You must audit your facility's primary hazards and environmental conditions. Follow a strict framework to ensure you deploy the correct protection profile.
Start by auditing your primary hazard. Are you dealing with combustible materials or electrostatic discharge sensitive items? Walk the floor and identify the most volatile zones. If you handle explosive gases, fine combustible dust, or volatile solvents, you need conductive footwear. If your primary concern is preventing damage to circuit boards, servers, or medical implants, you need static dissipative footwear. Document these zones clearly and mark them on your facility map.
Footwear does not work in isolation. There is a critical dependency between your shoes and your flooring. ESD and conductive shoes are completely useless on standard sealed concrete. They are also useless on insulated rubber mats. The electricity needs a path to travel. You must install specific conductive or static-dissipative epoxy coatings. Alternatively, you can use grounded interlocking tiles. The shoe and the floor must operate as a single, unified electrical system.
Test the surface resistance of your current flooring using a megohmmeter.
Verify that the floor connects to a verified earth ground via copper tape grids or grounding snaps.
Ensure the combined resistance of the person, the shoe, and the floor meets your target specification.
Controlled environments require specialized solutions. When selecting Anti-static cleanroom shoes, you must look beyond electrical resistance. Focus on ISO class compatibility. The footwear must utilize non-shedding materials like high-grade PU or PVC. You must ensure the materials control particulate generation. If your facility requires sterilization, ensure the footwear is fully autoclavable. Balancing static dissipation with strict contamination control is mandatory.
Your workers face multiple threats simultaneously. You must choose comprehensive ESD safety shoes that balance static control with physical protection. Look for aggressive tread patterns that provide slip resistance on oily floors. Ensure the midsoles offer puncture resistance against sharp metal debris. Finally, evaluate the ergonomic support. Workers standing on concrete for twelve-hour shifts need anti-fatigue properties built into the dissipative sole.
Procuring the right footwear is only the first step. Implementation failures ruin compliance programs daily. You must actively manage the risks associated with daily use, wear, and unauthorized modifications. A shoe that passes out of the box can fail within a week if mismanaged.
The industrial market is flooded with counterfeit safety gear. Many cheap shoes claim to be static dissipative but fail basic testing. You must verify manufacturer specification sheets rigorously. Demand third-party testing certifications that reference specific ASTM or EN ISO standards. Do not accept generic anti-static claims. If the vendor cannot provide a certified megohm range, do not purchase the footwear.
This is a major operational failure point. Workers often experience foot fatigue and purchase aftermarket gel or foam insoles. They remove the factory insole and insert the retail version. This instantly breaks the electrical connection between the foot and the shoe. Standard insoles are insulators. The worker is now completely isolated from the grounded floor, voiding all protective properties. You must mandate that workers only use certified, conductive replacement insoles provided by the facility.
Electrical resistance changes over time. Dirt, sweat, and chemical exposure alter the conductive properties of the sole. As the outsole wears down, the dissipative pathways degrade. A heavy accumulation of floor wax or grease on the bottom of the shoe can turn a compliant shoe into a dangerous insulator. Regular cleaning is not just about hygiene; it is a critical electrical maintenance task.
Inspect tread depth weekly. Worn treads reduce the contact area with the grounded floor.
Clean outsoles daily with approved static-dissipative floor cleaners. Avoid standard detergents that leave insulating residues.
Monitor the internal conductive stitching. If it frays or breaks, replace the shoe immediately.
Safety is a daily verification, not a one-time purchase. You must install footwear testing stations at the entrance of every Electrostatic Protected Area (EPA). Workers must test their shoes daily before crossing the line. The tester will verify if the shoe falls within the acceptable megohm range. If a shoe fails, the worker cannot enter. Strict enforcement of daily testing is the only way to guarantee your floor remains compliant.
Modern testing stations use dual-foot plates. This ensures both the left and right shoe pass independently. A worker might have a compliant right shoe but a failing left shoe due to a broken insole. Dual testing catches this discrepancy. You should also log these test results digitally. This provides an audit trail for quality control and safety compliance inspections.
Conduct a facility-wide hazard assessment to map out explosive zones versus electronics handling areas.
Audit your current flooring system's electrical resistance to verify integration with your selected footwear.
Install calibrated dual-foot testing stations at all entry points to your static-sensitive areas.
Ban all unauthorized aftermarket insoles to prevent accidental electrical isolation on the floor.
Consult with a certified safety officer to verify your footwear meets exact ASTM or ANSI/ESD S20.20 standards.
A: No. They dissipate static too slowly for highly volatile environments. Using them in explosive manufacturing or flammable dust areas risks a static spark that could ignite the atmosphere. Always use conductive footwear for explosive hazards.
A: No. Anti-static is a broad term with a wide, often unregulated resistance range. ESD footwear adheres to strict, narrow resistance ranges (typically 1 to 100 megohms) required for protecting sensitive microelectronics and meeting industry standards.
A: No. They are designed to dissipate static, not stop high voltage. While they offer slightly more resistance than conductive shoes, they will not protect you from a high-voltage electrocution. You need EH-rated footwear for live electrical hazards.
A: You must test them daily. Workers should use a calibrated footwear tester before entering any Electrostatic Protected Area (EPA). Dirt, wear, and sweat can change the shoe's resistance overnight.
A: Yes, in most cases. Human sweat typically provides enough moisture to create a conductive path through standard cotton or wool socks. However, ultra-thick or heavily synthetic socks might cause a failure at the testing station.
A: Failures usually occur due to dirty outsoles, worn-out treads, or unauthorized insulating insoles. Dry environments can also cause temporary failures. Cleaning the sole or replacing the factory insole often resolves the issue.
A: Only if the custom orthotic is specifically manufactured with conductive or static-dissipative materials. Standard retail orthotics act as insulators and will instantly break the electrical path to ground, causing the shoe to fail compliance testing.
