Compact workspaces in cleanrooms and laboratories face unique challenges balancing electrostatic control with space efficiency.

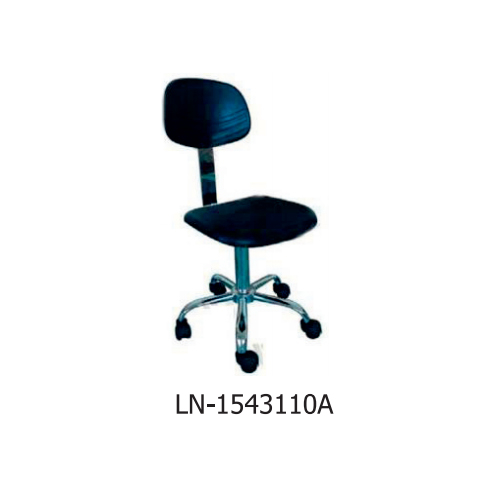

LN-1543110A
LEENOL
| Seat Size: | |
|---|---|
| Back Size: | |
| Five-star feet radius: | |
| Adjust. Height: | |
| Five-star feet R: | |
| Quantity: | |
Our ESD Workshop Cleanroom Stool delivers a space-saving solution with a small footprint (450mm diameter base) and comprehensive ESD protection, maintaining surface resistance of 10^6 - 10^8 Ω across all contact points. Constructed from 304 stainless steel and electrostatic dissipative (ESD) polyurethane, this stool meets ISO 14644-1 Class 7 cleanroom standards with particle emission rates <35 particles/ft³ (≥0.5μm). The height-adjustable design and chemical-resistant materials make it indispensable for precision work in confined environments.
The narrow profile allows placement in 600mm wide work aisles while supporting 360° rotation for easy access to surrounding work surfaces. The foot ring provides stability without extending the base footprint, increasing usable floor space by 25% compared to standard lab chairs.
A continuous conductive path from seat to floor ensures electrostatic decay time <1 second, verified through ESD STM11.11 testing. The stainless steel frame maintains <0.5Ω resistance at all connection points, preventing charge accumulation during movement.
The polyurethane seat withstands 1000+ cycles of cleaning with ethanol (70%), hydrogen peroxide (3%), and bleach solutions without degradation. Temperature stability from -30℃ to 80℃ allows use in cold storage and thermal testing areas.
Perfect for confined controlled environments:
Semiconductor Lithography Bays: Narrow access areas around wafer scanners
Biomedical Research Hoods: Stools for work within laminar flow cabinets
Aerospace Component Inspection Stations: Compact workcells for precision part verification
What is the height adjustment range?
The pneumatic cylinder adjusts from 500mm to 700mm seat height, accommodating work surfaces from 700mm to 900mm tall.
Does it require special floor conditions?
No, it functions effectively on ESD flooring, concrete, and cleanroom vinyl with proper grounding via the optional floor anchor kit.
Is the seat upholstered or solid?
The one-piece polyurethane seat is completely solid with no seams or fabric, eliminating particle traps and enabling thorough disinfection between shifts.
Our ESD Workshop Cleanroom Stool delivers a space-saving solution with a small footprint (450mm diameter base) and comprehensive ESD protection, maintaining surface resistance of 10^6 - 10^8 Ω across all contact points. Constructed from 304 stainless steel and electrostatic dissipative (ESD) polyurethane, this stool meets ISO 14644-1 Class 7 cleanroom standards with particle emission rates <35 particles/ft³ (≥0.5μm). The height-adjustable design and chemical-resistant materials make it indispensable for precision work in confined environments.
The narrow profile allows placement in 600mm wide work aisles while supporting 360° rotation for easy access to surrounding work surfaces. The foot ring provides stability without extending the base footprint, increasing usable floor space by 25% compared to standard lab chairs.
A continuous conductive path from seat to floor ensures electrostatic decay time <1 second, verified through ESD STM11.11 testing. The stainless steel frame maintains <0.5Ω resistance at all connection points, preventing charge accumulation during movement.
The polyurethane seat withstands 1000+ cycles of cleaning with ethanol (70%), hydrogen peroxide (3%), and bleach solutions without degradation. Temperature stability from -30℃ to 80℃ allows use in cold storage and thermal testing areas.
Perfect for confined controlled environments:
Semiconductor Lithography Bays: Narrow access areas around wafer scanners
Biomedical Research Hoods: Stools for work within laminar flow cabinets
Aerospace Component Inspection Stations: Compact workcells for precision part verification
What is the height adjustment range?
The pneumatic cylinder adjusts from 500mm to 700mm seat height, accommodating work surfaces from 700mm to 900mm tall.
Does it require special floor conditions?
No, it functions effectively on ESD flooring, concrete, and cleanroom vinyl with proper grounding via the optional floor anchor kit.
Is the seat upholstered or solid?
The one-piece polyurethane seat is completely solid with no seams or fabric, eliminating particle traps and enabling thorough disinfection between shifts.
