Heavy Duty Wire Shelf Trolley On Wheels Storage Wire Shelf Trolleys With Wheels

  • LN-1530608
  • LEENOL
Availability:
Quantity:

Anti-static wire rack/anti-static wire rack/storage rack


The anti-static wire mesh car is made of carbon steel/stainless steel frame, wire mesh plate, steel column and anti-static nylon wheels.

The four corners of the mesh plate are equipped with adjusting clamps and adjusting grooves, which are light and flexible.

The steel column is concave every one inch. The groove-in ring and the protruding coil of the connecting piece are assembled together,

and the required height can be adjusted according to the needs and the characteristics of effective discharge of electrostatic charge can

be adjusted quickly and convenient to use. Rugged and durable, the laminates are divided into two types: mesh and plate,

with a bridge structure, and the load-bearing distribution is even.

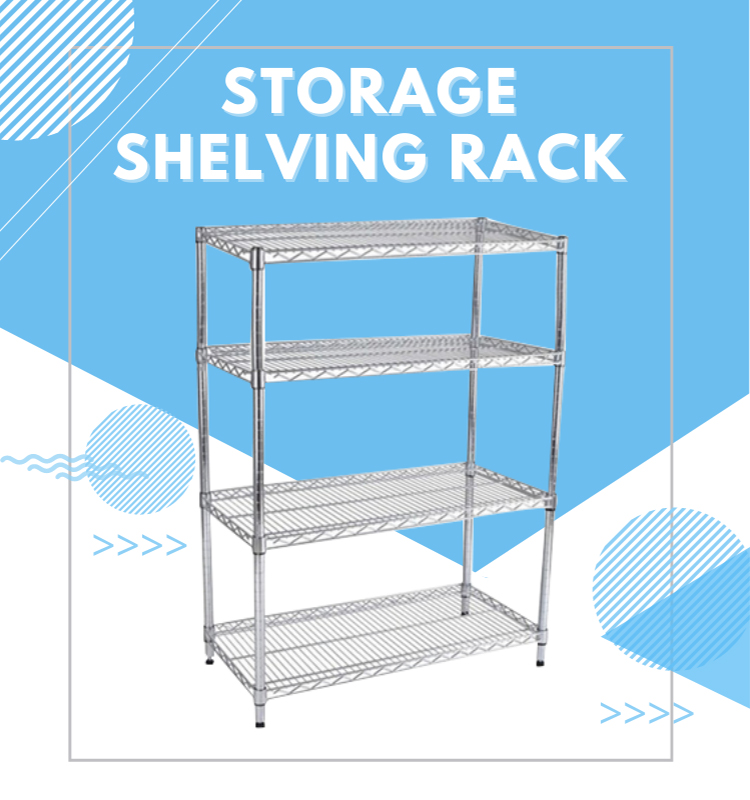

ESD WIRE SHELF-1

According to the different needs of the use, there are different specifications (for example: single-layer,

double-layer, hand-push, hand-push, etc.). When selecting, you need to make a reasonable choice according

to the weight of the load and the size of the object.


ESD WIRE SHELF-7

ESD WIRE SHELF-8


The anti-static trolley/wire net vehicle has the characteristics of stable storage,

free disassembly and assembly between layers, convenient adjustment, solid overall structure, and light usage.

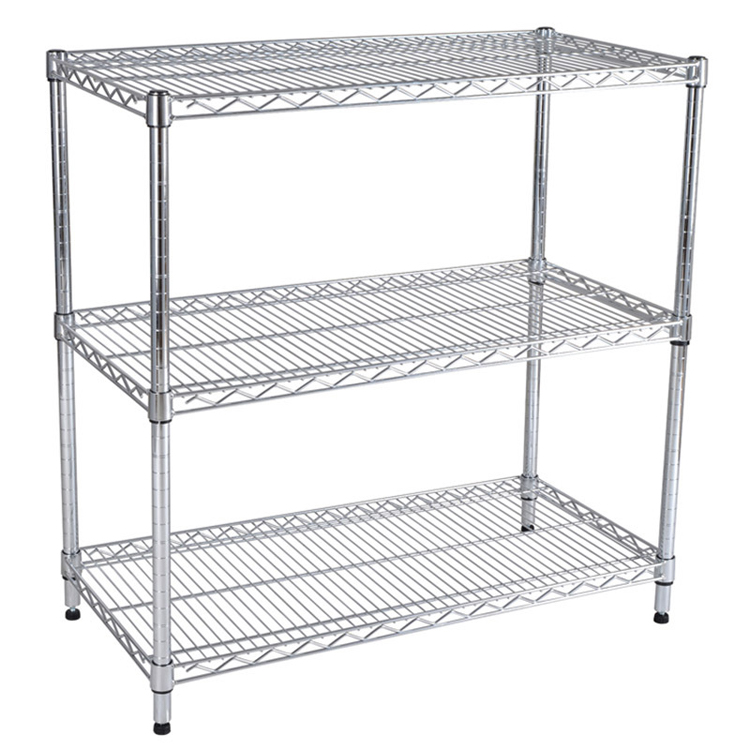

ESD WIRE SHELF-10

ESD WIRE SHELF-14

Width
(mm)
Length
(mm)
Chrome-plated
Wire Shelves
Stainless Steel
Wire Shelves
Width
(mm)
Length
(mm)
Chrome-plated
    Wire Shelves
Stainless  Steel
  Wire Shelves
  350 600 C 1424 S 1424   530 900 C 2136 S 2136
750 C 1430 S 1430 1050 C 2142 S 2142
900 C 1436 S 1436 1200 C2148 S 2148
1050 C 1442 S 1442 1500 C 2160 S 2160
1200 C 1448 S 1448 1800 C2172 S 2172
1500 C 1460 S 1460   600 600 C 2424 S 2424
1800 C 1472 S 1472 750 C 2430 S 2430
 450 600 C 1824 S 1824 900 C 2436 S 2436
750 C 1830 S 1830 1050 C 2442 S 2442
900 C 1836 S 1836 1200 C 2448 S 2448
1050 C 1842 S 1842 1500 C 2460 S 2460
1200 C 1848 S 1848 1800 C 2472 S 2472
1500 C 1860 S 1860   750 900 C 3036 -
1800 C 1872 S 1872 1200 C 3048 -
 530 600 C 2124 S 2124 1500 C 3060 -
750  C 2130  S 2130  1800  C 3072 -

ESD WIRE SHELF-11

ESD WIRE SHELF-12

ESD WIRE SHELF-13

ESD WIRE SHELF-2

ESD WIRE SHELF-3

ESD WIRE SHELF-4

ESD WIRE SHELF-5
