Electrostatic Discharge (ESD) wrist straps are an essential tool in the arsenal of any individual working with sensitive electronic components. These devices are designed to prevent the buildup of static electricity on a person's body, which can inadvertently cause damage to electronic parts. In this article, we delve into the workings of ESD wrist straps, their importance, and how they're used in various industries.

The Principle Behind ESD Wrist Straps

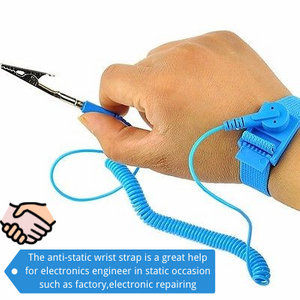

At the core of ESD wrist strap functionality is the principle of grounding. When worn correctly, an ESD wrist strap safely discharges static electricity accumulated on a person’s body to the ground. This is accomplished through the conductive material used in the strap, which provides a path of least resistance for static charges to flow away from the person and into the ground. This process effectively neutralizes the risk of electrostatic discharge, which could otherwise damage sensitive electronic components.

Components of an ESD Wrist Strap

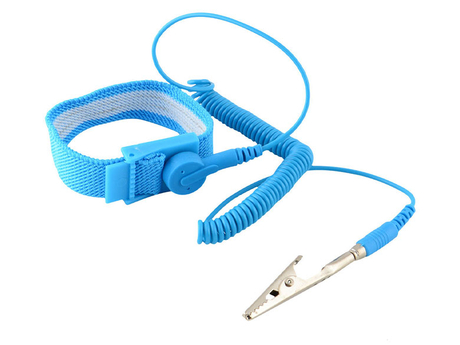

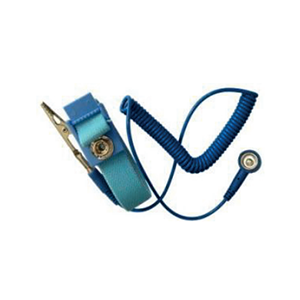

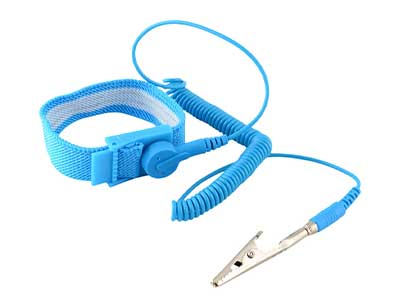

An ESD wrist strap typically consists of a band made from conductive materials and a wire with a resistor connected to a grounding point. The band comfortably wraps around the wrist, ensuring a secure fit, while the wire connects to a ground point, providing a continuous path for static electricity to be discharged safely.

Importance of the Resistor in ESD Wrist Straps

One critical component in the design of an ESD wrist strap is the resistor. It is specifically included to limit the current that can pass through the strap, providing an additional layer of safety for the user. The resistor ensures that even if the strap is connected to an electrical source, the current flowing through it will be minimal, protecting the wearer from potential harm.

Applications and Benefits of Using ESD Wrist Straps

ESD wrist straps find their applications in a variety of fields where electronic components are manufactured, tested, or handled. Industries such as electronics manufacturing, aerospace, and even hospitals benefit from the use of these straps. By mitigating the risk of ESD damage, companies can save significant costs associated with repairing or replacing sensitive equipment.

Enhancing Safety and Efficiency in Electronics Manufacturing

In electronics manufacturing, ESD wrist straps are indispensable for ensuring the integrity of electronic components throughout the production process. They not only protect delicate parts from ESD damage but also contribute to a safer working environment for employees.

Preventing Data Loss in IT and Telecommunications

In the IT and telecommunications sectors, data loss due to ESD can be catastrophic. The use of ESD wrist straps by technicians when handling sensitive equipment helps prevent such occurrences, ensuring data integrity and system reliability.

Maintaining and Testing ESD Wrist Straps

To ensure ESD wrist straps are effective in discharging static electricity, regular maintenance and testing are crucial. This includes inspecting the strap for wear and tear, testing its conductivity, and ensuring that the grounding point is functioning correctly. Such practices ensure that ESD wrist straps remain reliable tools in preventing electrostatic discharge.

Regular Inspection and Replacement

Regular inspection of ESD wrist straps for physical damage and wear is essential. Over time, straps may lose their conductivity or fit, necessitating replacement to maintain efficacy in grounding static charges.

Conductivity Testing

Periodic testing with specialized equipment can verify that an ESD wrist strap is functioning correctly. These tests ensure that the strap maintains proper electrical resistance levels, safeguarding against potential ESD risks.

In conclusion, ESD wrist straps play a pivotal role in safeguarding sensitive electronic components from the dangers of electrostatic discharge. Understanding their operation, benefits, and maintenance requirements allows individuals and organizations to implement effective ESD protection strategies. By faithfully using and maintaining ESD wrist straps, we can significantly reduce the risks associated with electrostatic damage, ensuring the longevity and reliability of electronic devices.
