The LN‑10006 is a high‑performance anti‑static fabric featuring a distinctive 3mm diamond‑shaped conductive grid. Constructed from 95% polyester with 5% conductive fibers permanently integrated into the weave, this fabric provides reliable electrostatic dissipation while offering excellent durability and a clean, professional appearance. The diamond grid pattern ensures omnidirectional conductivity, allowing static charges to be safely discharged from any angle.
Key Features & Benefits:
Reliable Static Control – Surface resistance between 10⁶ and 10⁹ ohms ensures effective static dissipation, protecting sensitive electronic components and reducing fire/explosion risks in hazardous areas.

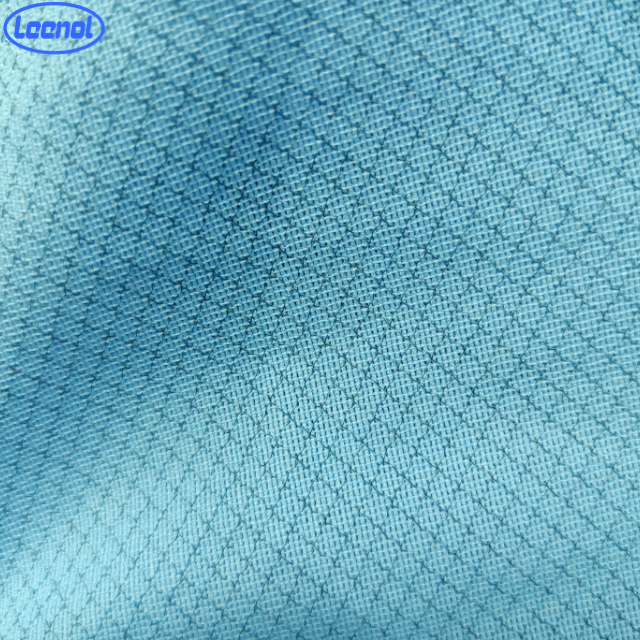

3mm Diamond Conductive Grid – Unlike linear stripe grids, the diamond pattern provides conductive paths in multiple directions, maintaining a continuous discharge network even if individual fibers are damaged.
Durable Polyester Base – 95% polyester offers superior tear strength, abrasion resistance, and dimensional stability, making it suitable for repeated industrial laundering and heavy-duty use.
Lightweight yet Sturdy – At 160 g/m², the fabric balances strength with comfort, ideal for workwear that requires both protection and ease of movement.
Versatile Color Options – Available in white (as shown) and black, with regular stock for both colors for quick delivery.
Wide Width – 1.52m width reduces seams in garment production, improving both efficiency and static protection integrity.
Permanent Anti-Static Performance – Conductive fibers are woven in, not surface-coated, ensuring the antistatic effect remains stable after multiple washes.
Typical Applications:
ESD protective clothing (lab coats, coveralls, smocks)
Cleanroom garments for electronics and semiconductor industries
Anti-static curtains and partitioning in cleanrooms
Industrial workwear in static-sensitive areas
Automotive and aerospace component manufacturing
Pharmaceutical and medical device assembly
Standards Compliance:
Meets GB 12014-2019 requirements for anti-static protective clothing, with surface resistance performance comparable to IEC 61340‑5‑1 and EN 1149 standards.
Parameter | Specification |
|---|---|
Product Code | LN‑10006 |
Product Name | Anti-Static Diamond-Shaped Fabric |
Color | White (Black also available in stock) |
Material Composition | 95% Polyester + 5% Conductive Fibers |
Conductive Grid | 3mm Diamond-shaped |
Weight | 160 g/m² |
Surface Resistance | 10⁶ – 10⁹ ohms |
Width | 1.52 m |
Unit of Measure | Meter |
Stock Colors | White and Black (regular stock) |
Customisation | Custom colors, widths, and specifications available on request |
Standards | GB 12014‑2019, IEC 61340‑5‑1, EN 1149 |
Origin | Made in China |
