Office environments adjacent to ESD Protected Areas (EPAs) represent an often-overlooked electrostatic hazard, with 15% of static-related failures traced to unprotected office area.

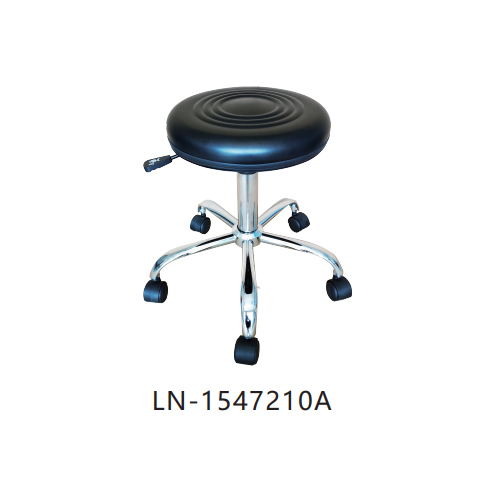

LN-1547210A
LEENOL
| Surface Size: | |
|---|---|
| Surface Resistance: | |
| Adiust. Height: | |
| Five-star feet radius: | |
| System Resistance: | |
| Quantity: | |
Our ESD Office Chair transforms workspaces into controlled environments with a comprehensive electrostatic dissipation system that maintains 10^6 - 10^9 Ω resistance across all surfaces. The chair combines conductive polyester mesh with a steel-reinforced frame and polyurethane foam cushioning, achieving both ergonomic support and ESD protection.
Conductive pathways integrate through the seat pan, backrest, and armrests, ensuring charge dissipation in <2 seconds regardless of user position. The five-star base includes a dedicated grounding cable with 4mm banana plug that connects to EPA floor mats or wall outlets.
The contoured backrest supports lumbar regions with 100N/m² pressure distribution, while the seat foam (density 45kg/m³) retains 90% of resilience after 100,000 cycles of testing. Height adjustment from 450mm to 550mm and 30° tilt range accommodate users from 150cm to 190cm tall.
The open-cell mesh allows 90% air circulation to prevent microbial growth, while resisting degradation from weekly cleaning with quaternary ammonium compounds. All materials meet ISO 10993-5 biocompatibility standards for skin contact safety.
Ideal for transitional EPA workspaces:
Electronics R&D Offices: Design stations adjacent to prototype assembly areas
Medical Device Review Rooms: Document control areas near sterile production zones
Precision Instrument Calibration Labs: Workstations requiring both ESD control and operator comfort
How is the chair grounded to the EPA?
A 2-meter retractable cable with 4mm banana plug connects to standard grounding points; we recommend using our ESD floor mat grounding kit for optimal performance.
What is the maximum weight capacity?
The chair supports 150kg static load with a safety factor of 2.5x, exceeding ANSI/BIFMA X5.1 standards.
Can the mesh be replaced if damaged?
Yes, the modular design allows mesh replacement without replacing the entire chair frame, extending service life to 10+ years with proper maintenance.
Our ESD Office Chair transforms workspaces into controlled environments with a comprehensive electrostatic dissipation system that maintains 10^6 - 10^9 Ω resistance across all surfaces. The chair combines conductive polyester mesh with a steel-reinforced frame and polyurethane foam cushioning, achieving both ergonomic support and ESD protection.
Conductive pathways integrate through the seat pan, backrest, and armrests, ensuring charge dissipation in <2 seconds regardless of user position. The five-star base includes a dedicated grounding cable with 4mm banana plug that connects to EPA floor mats or wall outlets.
The contoured backrest supports lumbar regions with 100N/m² pressure distribution, while the seat foam (density 45kg/m³) retains 90% of resilience after 100,000 cycles of testing. Height adjustment from 450mm to 550mm and 30° tilt range accommodate users from 150cm to 190cm tall.
The open-cell mesh allows 90% air circulation to prevent microbial growth, while resisting degradation from weekly cleaning with quaternary ammonium compounds. All materials meet ISO 10993-5 biocompatibility standards for skin contact safety.
Ideal for transitional EPA workspaces:
Electronics R&D Offices: Design stations adjacent to prototype assembly areas
Medical Device Review Rooms: Document control areas near sterile production zones
Precision Instrument Calibration Labs: Workstations requiring both ESD control and operator comfort
How is the chair grounded to the EPA?
A 2-meter retractable cable with 4mm banana plug connects to standard grounding points; we recommend using our ESD floor mat grounding kit for optimal performance.
What is the maximum weight capacity?
The chair supports 150kg static load with a safety factor of 2.5x, exceeding ANSI/BIFMA X5.1 standards.
Can the mesh be replaced if damaged?
Yes, the modular design allows mesh replacement without replacing the entire chair frame, extending service life to 10+ years with proper maintenance.
