LN-1560116
Leenol
LN-1560116
| Quantity: | |
|---|---|

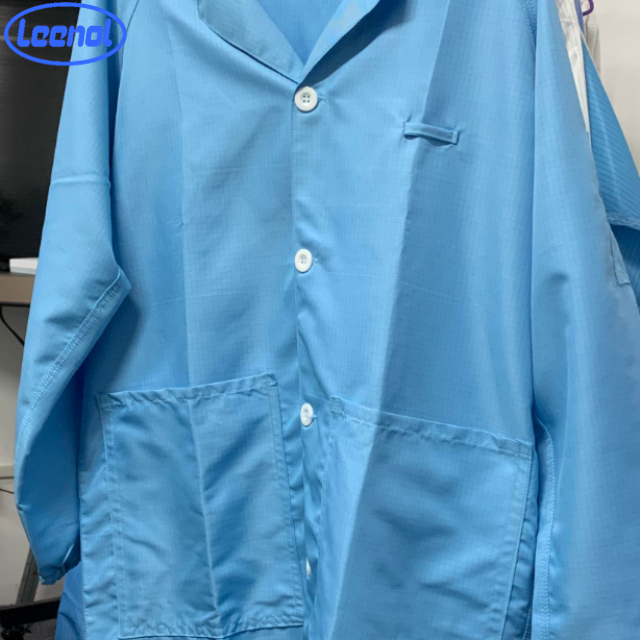

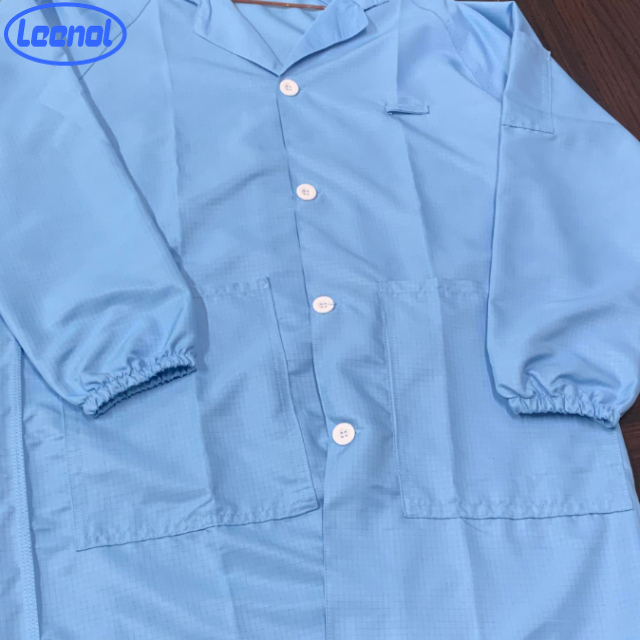

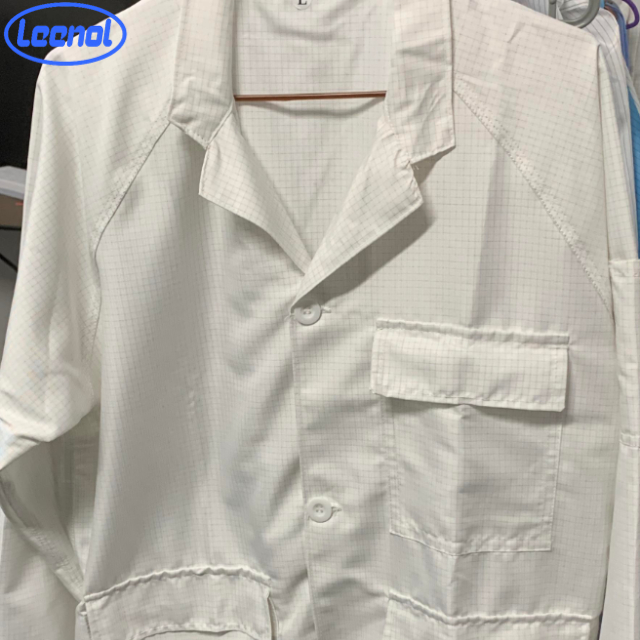

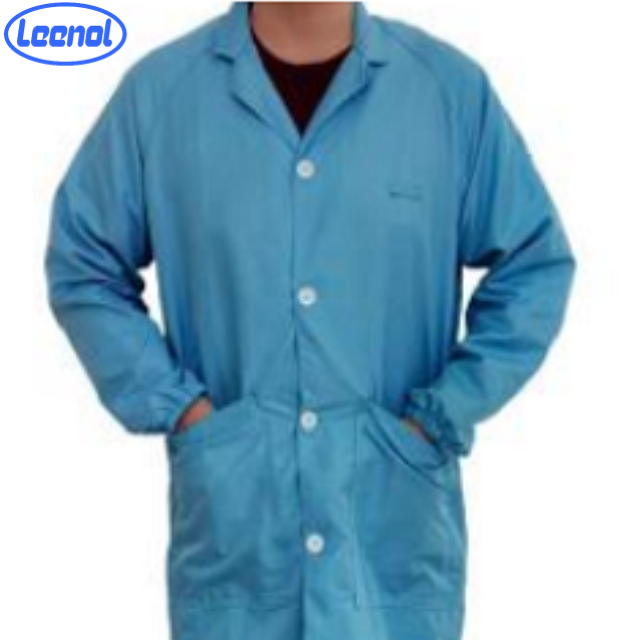

The LN‑1560116 is a high‑performance ESD protective jacket engineered for environments where both static control and thermal comfort are critical. Featuring a unique fabric blend of 56% polyester, 4% carbon fibre, and 40% moisture‑absorbing quick‑dry yarn, this jacket effectively dissipates static charges while actively wicking sweat away from the body, keeping operators dry and comfortable throughout long shifts.
Reliable ESD Protection – Surface resistance between 10⁶ and 10⁷ ohms ensures rapid static dissipation, safeguarding sensitive electronic components and reducing explosion risks in flammable atmospheres.
5mm Conductive Grid – The evenly spaced 5mm grid of carbon fibres provides a consistent conductive path across the entire garment, ensuring stable antistatic performance even after repeated wear and washing.
Advanced Moisture Management – 40% moisture‑wicking yarn quickly transports perspiration to the fabric surface for fast evaporation, ideal for warm or high‑activity work environments.
Short Length Design – The hem sits just above the hips, offering unrestricted movement and a modern, streamlined fit—perfect for tasks requiring frequent bending or reaching.
Comfortable Fit – Long sleeves and a classic lapel collar provide full upper‑body coverage, while the lightweight fabric ensures breathability and all‑day comfort.
Easy On/Off – Button‑front closure allows quick dressing and adjustment.
Customisation Options – Available in standard white; other colours, sizes, and branding (e.g., custom labels) can be accommodated upon request.
Electronics assembly and semiconductor cleanrooms
PCB manufacturing and SMT production lines
Pharmaceutical cleanrooms and medical device assembly
Laboratory and R&D facilities
Automotive electronics workshops
Meets IEC 61340‑5‑1, ANSI/ESD S20.20, and GB 12014‑2019 requirements for ESD protective garments.
Parameter | Specification |
|---|---|
Product Code | LN‑1560116 |
Product Name | ESD Quick‑Drying Jacket – Short, Long Sleeve |
Color | White |
Material Composition | 56% Polyester + 4% Carbon Fibre + 40% Moisture‑Absorbing Quick‑Dry Yarn |
Conductive Grid | 5mm × 5mm (carbon fibre) |
Surface Resistance | 10⁶ – 10⁷ ohms |
Closure Type | Buttons |
Length | Short (covers hips) |
Sleeve Length | Long sleeves |
Collar | Lapel / Turn‑down collar |
Unit of Measure | Piece |
Customisation | Size, colour, design, and labels available on request |
Standards | IEC 61340‑5‑1, ANSI/ESD S20.20, GB 12014‑2019 |
Origin | Made in China |
