In SMT manufacturing, solder paste printing is often considered one of the most sensitive processes on the entire production line. A small issue during printing can easily affect component placement, solder joint quality, and even the final reliability of the PCB assembly. That is why experienced SMT engineers usually pay close attention not only to printers and solder paste, but also to stencil cleaning performance.
Among all stencil cleaning consumables, the stencil roller is one of the most important — yet one of the easiest to underestimate.
At first glance, a stencil wiping roll looks fairly simple. It is basically a roll of wiping material installed inside the printer. But once production starts running continuously for hours, especially on fine-pitch or high-density boards, the quality of the stencil cleaning system becomes extremely important. If solder paste residue begins accumulating under the stencil, printing consistency quickly starts to decline.
That is exactly why choosing the right SMT Stencil Roller matters more than many people expect.
A good stencil cleaning roller helps maintain stable solder paste deposits, reduces contamination risks, minimizes printing defects, and keeps production running smoothly. On the other hand, a low-quality wiping roll may lead to solder paste smearing, blocked apertures, machine feeding problems, excessive lint, and higher rework rates.
The challenge is that many stencil wiping rolls on the market appear similar on the surface. Without understanding the actual differences in materials, compatibility, absorbency, and durability, it is easy to choose a product that looks acceptable initially but creates problems later during production.
So how do you actually choose the right stencil cleaning roller for your SMT line?
The answer depends on several practical factors, including your printer model, PCB complexity, production volume, cleaning method, and contamination control requirements.
Before choosing a stencil roller, it helps to first understand its role inside the SMT printer.

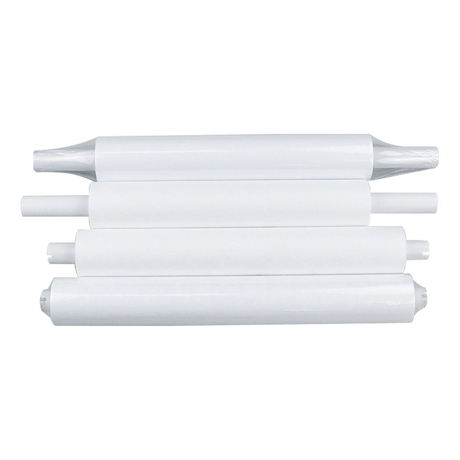

An SMT Stencil Roller, also called a Stencil Roller or stencil wiping roll, is the cleaning material used in the printer’s automatic stencil cleaning system. Its job is to remove solder paste residue, flux buildup, dust particles, and contaminants from the underside of the stencil during production.
As printing continues, solder paste naturally begins accumulating beneath the stencil. Even when the printer itself is highly accurate, residue buildup eventually affects paste transfer performance. The result may be inconsistent solder deposits, poor print definition, solder bridging, or insufficient solder joints.
The stencil wiping roll helps prevent this by continuously cleaning the stencil at programmed intervals.
Most modern SMT printers perform cleaning automatically during production. Depending on the process setup, the machine may use dry wiping, wet wiping, vacuum cleaning, or a combination of all three methods.
Although the cleaning system itself is automated, the actual cleaning effectiveness still depends heavily on the quality of the wiping material being used.
Many factories initially treat stencil wiping rolls as simple consumables and focus mainly on reducing purchase cost. But over time, they often realize that low-quality stencil rollers can create much bigger production costs indirectly.
One common issue is incomplete cleaning. If the wiping material does not absorb solder paste effectively, residue remains beneath the stencil after cleaning cycles. This buildup gradually affects printing quality and increases the chance of SPI failures.
Another issue is lint contamination. Some low-cost wiping materials release fibers during operation. Those particles may remain on the stencil surface or PCB, creating contamination risks during soldering.
Poor material durability can also create problems. Weak wiping materials may tear or deform inside the printer, causing feeding instability or machine alarms. Once production stops unexpectedly, downtime costs usually become far more expensive than the difference between cheap and high-quality wiping rolls.
This is why experienced SMT process engineers often evaluate stencil wiping rolls based on total process impact rather than unit price alone.
A stable and reliable Stencil Roller helps improve overall printing consistency, reduce rework rates, and maintain smoother production flow over long operating periods.
One of the most important parts of choosing a stencil roller is making sure it matches your SMT printer properly.
Different printer brands require different roll specifications, and even machines from the same manufacturer may use different dimensions depending on the model.
This is especially important for products like the Stencil Wiping Roll for DEK Printer, which is specifically designed to fit DEK printer cleaning systems. The roll width, core diameter, material thickness, and winding structure all need to match the machine correctly.
If the dimensions are slightly wrong, several issues may appear during operation. The roll may feed unevenly, cleaning pressure may become inconsistent, or the material may jam during automatic cleaning cycles.
That is why machine compatibility should always be confirmed before purchasing stencil wiping rolls.
Reliable suppliers usually provide detailed compatibility information for major SMT printer brands such as DEK, Panasonic, Yamaha, MPM, GKG, EKRA, and Hanwha.
Once compatibility is confirmed, the next major factor is material quality.
At first glance, many stencil wiping rolls may look very similar visually. However, the actual material structure can vary significantly between manufacturers.
Most stencil cleaning rollers are made from polyester, cellulose blends, wood pulp composites, or nonwoven fabric materials. The difference is not simply the raw material itself, but also how the material is processed, layered, wound, and treated for industrial SMT applications.
A good stencil roller should provide stable absorbency, low lint generation, strong durability, and uniform thickness throughout the entire roll.
Low-quality materials often create inconsistent cleaning performance. In some cases, the roll may absorb solder paste poorly. In others, the material may begin shedding fibers during operation.
For modern fine-pitch SMT production, contamination control has become increasingly important. Even very small particles can affect solder paste deposition accuracy on high-density PCBs.
That is why many advanced SMT factories prefer higher-grade wiping materials designed specifically for low-particle industrial cleaning environments.
When choosing a stencil cleaning roller, absorbency is something that should never be overlooked.
The wiping material must effectively absorb excess solder paste, flux residue, cleaning solvents, and fine contaminants during each cleaning cycle. If absorbency is poor, the stencil may still retain residue even after wiping.
This becomes especially important in lead-free solder processes and ultra-fine pitch printing applications, where residue buildup tends to occur more quickly.
Good absorbency helps maintain cleaner stencil apertures, which directly improves solder paste transfer consistency.
Over long production runs, better absorbency can noticeably reduce printing variation and help stabilize SPI inspection results.
Many factories only realize the importance of absorbency after experiencing repeated print defects caused by incomplete stencil cleaning.
Another important point when choosing an SMT Stencil Roller is understanding how your production line performs stencil cleaning.
Some SMT lines mainly use dry wiping. In this method, the wiping roll removes loose solder paste and particles without using cleaning solvent. Dry wiping is faster and consumes fewer materials, making it suitable for stable production environments.
However, dry wiping alone may not fully remove sticky flux residues during long production runs.
Wet wiping combines cleaning solvent with the stencil roller. The solvent helps dissolve solder paste buildup and improves cleaning efficiency, especially for fine-pitch applications and lead-free solder processes.
If your production line uses wet cleaning frequently, the wiping material must also have good solvent compatibility. Some low-quality materials weaken or deform when exposed to cleaning fluids repeatedly.
This is why stencil roller selection should always consider the actual cleaning method used on the production line.
As electronic products continue becoming smaller and more complex, SMT printing requirements are becoming stricter as well.
Modern PCBs often include ultra-fine pitch components, micro BGAs, and densely packed layouts. In these environments, even very small amounts of contamination or solder paste variation can affect assembly quality.
Factories producing smartphones, AI hardware, automotive electronics, semiconductor modules, and medical devices usually place much stricter requirements on stencil cleanliness.
For these applications, high-quality stencil wiping rolls with strong absorbency and ultra-low lint performance are extremely important.
In many cases, upgrading stencil cleaning materials alone can noticeably improve printing consistency and reduce defect rates.
One common mistake in SMT purchasing is focusing only on the initial purchase price.
Cheap stencil rollers may look attractive from a cost perspective, but the long-term production impact is often much more expensive.
Low-quality wiping materials may increase:
SPI failures
Rework rates
Machine stoppages
Feeding errors
Solder paste defects
Contamination risks
Once production efficiency decreases, the actual cost difference becomes much larger than the savings from purchasing cheaper consumables.
This is why many professional SMT factories evaluate stencil rollers based on process stability rather than unit price alone.
Reliable cleaning performance usually saves money over time by improving production consistency and reducing unnecessary downtime.
Even a good stencil wiping material becomes less useful if quality consistency changes from batch to batch.
That is why supplier reliability matters just as much as the product itself.
A professional stencil roller supplier should provide stable manufacturing quality, clear compatibility information, technical support, and consistent delivery capability.
Experienced suppliers also understand actual SMT production challenges rather than simply selling generic consumables.
For many factories, long-term supply stability becomes especially important when production volumes increase.
Reliable SMT production depends heavily on stable consumables and consistent process control. That is why many electronics manufacturers prefer suppliers that understand real SMT production environments rather than simply offering low-cost products.
LEENOL specializes in providing professional SMT and ESD solutions for electronics manufacturing industries worldwide. Its product range includes SMT Stencil Roller, stencil wiping rolls, cleanroom consumables, anti-static products, packaging materials, and industrial ESD solutions.
With more than 15 years of industry experience and exports to over 70 countries, LEENOL provides reliable product quality, stable supply capability, and customized support for SMT production lines. For manufacturers looking to improve stencil cleaning efficiency and maintain stable solder paste printing quality, high-quality stencil wiping materials can make a meaningful difference in overall production performance.
An SMT Stencil Roller is used to clean the underside of SMT stencils during solder paste printing to remove solder paste residue, contaminants, and particles.
Good absorbency helps remove solder paste and flux residue effectively, improving stencil cleanliness and printing consistency.
A Stencil Wiping Roll for DEK Printer is a stencil cleaning roll specifically designed to fit DEK SMT printer cleaning systems.
Yes. Poor-quality stencil rollers may cause incomplete cleaning, lint contamination, solder paste smearing, and unstable printing results.
You should consider printer compatibility, material quality, absorbency, lint performance, durability, and your production cleaning method before selecting a stencil wiping roll.
