Views: 0 Author: Site Editor Publish Time: 2025-04-16 Origin: Site
Did you recognize that even a tiny electrostatic discharge (ESD) can break touchy digital elements in a cut up second? ESD is a hidden risk for all people working with electronics, from meeting traces to non-public DIY projects. Without appropriate precautions, static electrical energy from your physique can ruin elements really worth heaps of dollars. But don’t worry—there’s a easy solution: the ESD wrist strap.
In this article, we’ll talk about the perfect way to put on and use an ESD wrist strap. You’ll study why this device is crucial for keeping the integrity of your electronics and how it can guard you and your work surroundings from steeply-priced mistakes. Whether you’re a expert technician, a hobbyist, or jogging an electronics business, following the proper ESD security practices can make all the difference.

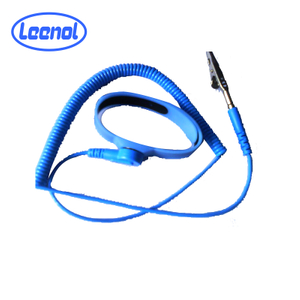

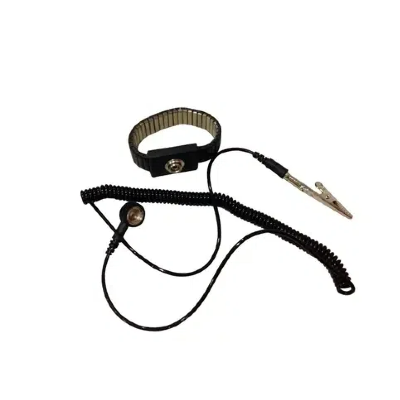

An ESD wrist strap is a easy but essential device designed to shield digital elements from electrostatic discharge (ESD). It gives a protected course for static electrical energy to waft from your physique to the ground, stopping any probably hazardous buildup.
1. Conductive Band: The band is worn around your wrist, made from a conductive material like carbon or stainless steel, ensuring direct contact with the skin.
2. Grounding Cord: This connects the wrist strap to a grounding point, which is typically a grounded metal surface.
3. Resistor: A built-in resistor helps to limit the current to safe levels, ensuring you are not exposed to any electrical hazard.
4. Alligator Clip or Banana Plug: These are used to connect the wrist strap to the grounding point.
Static electrical energy can be generated thru easy moves like on foot on a carpet or brushing towards a artificial fabric. Without an ESD wrist strap, these fees can construct up on your physique and switch to touchy digital parts, inflicting extreme damage.
● Component Failure: ESD can cause an immediate failure of microprocessors, memory chips, and circuit boards.
● Intermittent Issues: Sometimes, static can cause hidden faults, leading to intermittent problems that are difficult to diagnose.
● Costly Repairs: Repairing or replacing damaged components can be expensive, not to mention the time lost during troubleshooting.
By using an ESD wrist strap, you protect both your devices and your reputation, ensuring that your work is of the highest quality.
Before you use your ESD wrist strap, usually operate a rapid check. Inspect the band, the grounding cord, and the resistor to make certain the entirety is in top condition. If there are any seen symptoms of put on or damage, substitute the wrist strap immediately.
● Position the Band: Slide the strap over your wrist. It should fit snugly but not too tightly, ensuring full contact with your skin.
● Secure the Strap: Fasten the strap so it stays in place throughout your work. The more secure the fit, the better the contact with your skin, ensuring effective grounding.
● Attach the Clip: Secure the alligator clip or banana plug to a suitable grounding point. Common grounding points include:A metal part of the equipment you’re working on (as long as it’s unpainted).
A grounded workbench or ESD mat.
A grounded outlet or grounding bar.
● Check the Ground: If your wrist strap doesn’t have an indicator light, consider using a multimeter to check if the ground is properly connected.
For the ESD wrist strap to feature properly, you have to preserve consistent contact with the grounded surface. Avoid working on surfaces that are static-prone or insulating, like plastic workbenches or artificial clothing.
Over time, put on and tear can have an effect on the performance of your wrist strap. Test it in many instances to make positive it is nevertheless presenting a secure ground. Some wrist straps come with built-in testers, whilst others may require an exterior take a look at to confirm grounding.
● Use an ESD Mat: Place an anti-static mat on your workbench. This will help to prevent any static buildup in the area and provide an additional grounding path.
● Avoid Synthetic Materials: When working with sensitive electronics, avoid wearing clothes made from synthetic fibers, as they can create static.
● Discharge Yourself Before Handling Components: Even if you're not wearing a wrist strap, make sure to discharge any static electricity by touching a grounded metal object before working on electronics.
● Keep Your Workspace Clean: Static is more likely to accumulate in cluttered or improperly organized workspaces. Keep your tools and materials neat and grounded.
Proper use of an ESD wrist strap is vital in defending touchy electronics from injury prompted via electrostatic discharge. By following the suggestions above, you make certain that static buildup is safely diverted to the ground, maintaining each the integrity of your gadgets and the first-class of your work.
When it comes to dependable ESD protection, LEENOL presents wonderful ESD wrist straps and grounding kits designed to meet the wishes of expert technicians and businesses. Visit their website to explore a range of merchandise tailor-made to hold your workspace secure and static-free.
A: The wrist strap should be snug enough to make full contact with your skin but not too tight. You should be able to wear it comfortably without it being restrictive.
A: No, it’s essential to use an unpainted metal surface that is properly grounded. Painted metal can hinder the grounding process.
A: It’s good practice to check your wrist strap before every use to ensure it’s in good working condition. If you notice any wear or damage, replace it immediately.
A: Yes, ESD wrist straps are designed for prolonged use. However, make sure to check the fit and grounding connection regularly to ensure they are still effective.
