Latent Electrostatic Discharge (ESD) damage acts as a hidden threat in electronics assembly and repair. A microscopic spark can compromise a semiconductor, leading to premature field failures long after the product leaves the bench. The market is saturated with falsely advertised products. A surface that merely prevents static generation is completely insufficient for handling sensitive electronics. It must actively and safely dissipate existing charges away from delicate components. Selecting a verifiable anti static mat requires a strict technical framework. You cannot rely on visual appearance alone. We will detail material composition, resistance ranges, grounding mechanics, environmental durability, and industry-specific compliance. This ensures your workstation meets rigorous electrical standards and protects sensitive components from catastrophic discharge.
Material dictates longevity and application: Dual-layer rubber offers superior heat and chemical resistance compared to single-layer vinyl.
Dissipative, not just conductive: A proper electronics mat must fall within the static-dissipative range ($10^6$ to $10^9$ ohms) to bleed charge safely without causing a short circuit.
A mat is only as good as its ground: Without proper grounding hardware (snaps, cords, and common point grounds), an anti static mat is entirely ineffective.
Maintenance impacts performance: Standard chemical cleaners degrade ESD properties; specialized maintenance is a strict requirement for long-term compliance.
Industry terminology often creates dangerous confusion on the production floor. Many suppliers use the term "anti-static" loosely. True anti-static materials only prevent triboelectric charge generation. When a technician slides a plastic component tray across a standard laminate workbench, the friction strips electrons from one surface and deposits them on the other. This creates a static charge. If a sensitive component comes into contact with this charged surface, the rapid transfer of electrons destroys the internal gate oxide layer.
Many facilities mistakenly purchase standard anti-static mats treated with a topical antistat. This chemical absorbs moisture from the air to create a slightly conductive sweat layer. This prevents the mat itself from generating a charge when rubbed. However, if you place a charged circuit board onto this mat, the charge has nowhere to go. The mat acts as an insulator.
A true static-dissipative surface provides a controlled path to ground. When a charged object touches the mat, the material slows down the transfer of electrons. It bleeds the charge away over a fraction of a second. This controlled discharge prevents the microscopic spark that causes component failure. An effective anti static workbench mat must perform both functions. It must resist generating new charges while actively dissipating existing ones.
ANSI/ESD S20.20 compliance dictates the exact parameters for this process. The standard requires the surface resistance to remain within a specific window, regardless of ambient humidity or temperature. Facilities handling Class 0 sensitive items must adhere strictly to these guidelines to prevent catastrophic yield losses.
Manufacturers primarily use two materials for workstation surfaces: vinyl and rubber. Your choice directly impacts the physical durability and electrical reliability of the workstation. Understanding the chemical and structural differences prevents premature equipment failure.
Vinyl mats consist of polyvinyl chloride (PVC) mixed with plasticizers to make them flexible. They are extruded into a single solid layer or a dual-layer configuration. Vinyl provides a smooth, easily cleanable surface. It works well in clean packaging areas, server assembly rooms, or inspection stations where technicians do not use soldering irons or harsh chemicals.
The primary failure mode for vinyl in an active lab is heat damage. A standard soldering iron operates between 600°F and 800°F. If a technician drops the iron, or if hot solder splashes onto the bench, the vinyl melts instantly. This creates a permanent crater in the surface. The melted area loses its dissipative properties, creating an insulative dead zone on the bench. Furthermore, vinyl reacts poorly to common electronics chemicals. Isopropyl alcohol (IPA), flux removers, and conformal coating thinners strip the plasticizers from the PVC. The mat hardens, becomes brittle, and eventually cracks. The edges often curl upward, creating a physical snag hazard for delicate components.

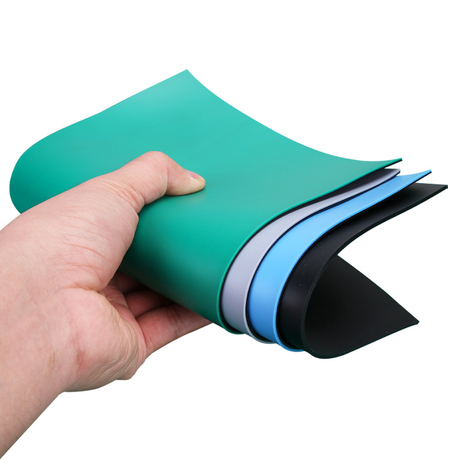

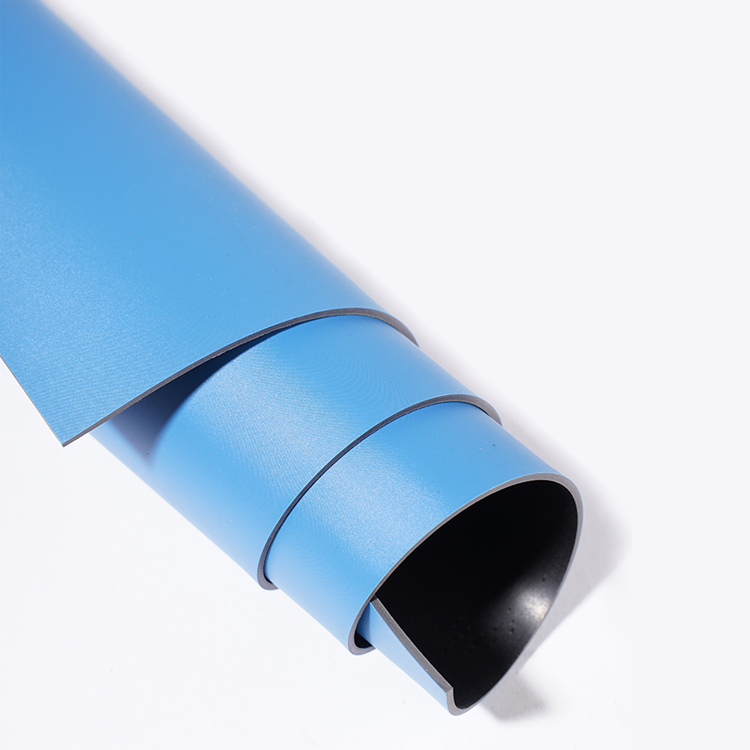

A premium ESD rubber table mat utilizes a vulcanized nitrile rubber compound. The manufacturing process creates a permanent dual-layer structure. The top colored layer contains dissipative agents cross-linked into the rubber matrix. The bottom black layer contains high concentrations of carbon black, making it highly conductive.
Nitrile rubber exhibits exceptional thermal stability. You can place a hot soldering iron directly on the surface for several seconds without causing a burn mark or melting the material. Hot solder splashes simply cool on the surface and brush away easily. The rubber also resists aggressive chemical solvents. Technicians can scrub the mat with heavy-duty flux removers without degrading the physical flexibility or the electrical properties.
In cleanroom environments, rubber outperforms vinyl significantly. Vinyl materials continuously outgas volatile organic compounds (VOCs) and shed microscopic plasticizer particles. These particles contaminate sensitive optics and bare semiconductor wafers. Vulcanized rubber remains stable, exhibiting near-zero outgassing and particulate shedding.
Evaluation Parameter | Vinyl Workstation Mats | Vulcanized Rubber Mats |
|---|---|---|
Thermal Stability | Melts instantly upon contact with hot solder | Withstands direct contact with soldering irons |
Chemical Resistance | Degrades when exposed to IPA and flux removers | Highly resistant to industrial solvents |
Physical Durability | Hardens and curls at the edges over time | Maintains flexibility and lays flat indefinitely |
Cleanroom Suitability | High outgassing and particulate shedding | Low outgassing, suitable for controlled environments |
Surface resistance dictates how quickly a charge spreads across the top layer of the mat. We measure this in ohms per square. The static-dissipative range sits strictly between $10^6$ (one million) and $10^9$ (one billion) ohms.
If the surface resistance drops below $10^5$ ohms, the material becomes too conductive. A highly conductive surface allows electrons to move instantly. If a charged component touches a highly conductive surface, the rapid discharge creates a spark. This is known as a hard ground. Hard grounds destroy sensitive electronics just as easily as static buildup.
If the surface resistance exceeds $10^9$ ohms, the material approaches the insulative range. Insulators block the flow of electrons. A charged component placed on an insulative surface retains its charge indefinitely. When a grounded technician eventually picks up that component, the charge discharges through the technician, damaging the part.
The volume resistance measures the electrical path straight down through the thickness of the mat. The top dissipative layer slows the initial discharge. Once the charge passes through the top layer, it hits the bottom conductive layer. This bottom layer typically measures below $10^6$ ohms. Its sole purpose is to act as an electrical highway. It takes the charge and moves it as fast as possible to the grounding snap.
You must never use carbon-loaded floor mats on a workbench. Floor mats are designed to ground personnel through their footwear. They often feature surface resistances below $10^4$ ohms. If you place a highly conductive floor mat on a workbench, you create a severe safety hazard. If a technician is probing a live circuit board and accidentally touches a high-voltage trace while resting their arm on a conductive mat, the mat provides a direct, low-resistance path to earth ground. This can result in a lethal electrical shock.
When outfitting a facility, you must determine the optimal coverage strategy. Covering the entire workbench surface from edge to edge provides the highest level of safety. It eliminates the possibility of a technician setting a sensitive board on an ungrounded section of laminate. For large-scale manufacturing floors, purchasing 40-foot bulk rolls provides the best efficiency. Maintenance teams can roll out the material and cut it to fit custom bench dimensions perfectly. For smaller repair shops or individual lab stations, pre-cut mats offer convenience. They arrive with the grounding snaps already installed, eliminating the need for specialized punch tools.
Surface texture plays a critical role in daily operations. Smooth finishes allow technicians to slide heavy equipment easily. They also provide a flat surface for writing on schematics or work orders. However, smooth surfaces offer little grip. If a bench is slightly unlevel, cylindrical components or loose screws can roll off the edge.
An anti-slip ESD table mat features a lightly embossed or textured surface. This texture provides mechanical grip. It prevents delicate components from sliding during intricate assembly tasks. It also helps technicians maintain control when maneuvering heavy metal chassis or dense server power supplies. The texture traps small screws and standoffs, keeping the workspace organized.
Mat thickness directly impacts operator comfort and component safety. Standard mats range from 0.060 to 0.080 inches thick. This thickness provides a slight mechanical yield. When a technician drops a fragile printed circuit board onto the bench, the rubber absorbs the impact energy. This cushioning prevents cracked solder joints, chipped ceramic capacitors, and damaged corner traces. The slight yield also reduces operator fatigue. Technicians resting their wrists on the edge of the bench during eight-hour soldering shifts experience less strain on a rubber surface compared to hard laminate.
Color selection goes beyond facility aesthetics. Light blue, light green, and grey dominate the industry for functional reasons. These colors provide high visual contrast. Modern surface-mount devices (SMDs) are incredibly small and typically black or silver. A light blue background makes these microscopic components stand out clearly, reducing eye strain. Furthermore, premium mats feature a matte finish. Bright overhead LED lighting reflects harshly off glossy surfaces, causing glare and visual fatigue. A matte finish diffuses the light, creating a comfortable visual environment for intricate inspection work.
A mat cannot dissipate static without a physical connection to earth ground. The grounding architecture requires specific hardware components installed in a precise sequence.
First, you must install a metal snap fastener. This requires a specialized punch tool to drive the metal prongs through both layers of the rubber. The prongs must crimp securely against the bottom conductive layer. If the snap only contacts the top dissipative layer, the electrical path is severely restricted.

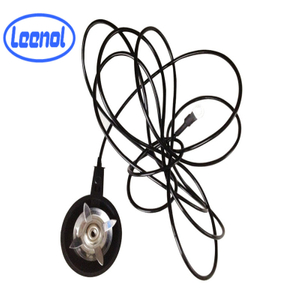

Second, you connect a grounding cord to the snap. This cord must contain a built-in 1-megohm safety resistor. This resistor is a non-negotiable safety requirement. It allows static electricity to bleed through safely. However, if the operator touches a live electrical wire, the resistor chokes the current. It limits the current flow to a safe level, preventing a lethal surge of mains electricity from traveling through the mat and the operator.
Third, the grounding cord connects to a common point ground block. This block mounts to the frame of the workbench. It serves as the central hub for all grounding connections at that specific station. The common point ground block then connects directly to the facility's verified equipment ground.
The bench surface represents just one layer of defense in a holistic static control ecosystem. The mat must work in tandem with static-dissipative floor mats, grounded shelving, and compliant packaging. Operators must wear ESD smocks to shield the bench from charges generated by their street clothes.
The mat grounds the components, but it does not ground the operator. Operators must wear a fitted wrist strap connected to the same common point ground block. This ensures the mat, the components, and the technician all share the exact same ground potential. If a difference in potential exists between the operator and the board, a damaging discharge will occur the moment they touch the PCB.
Never daisy-chain mats together. Connecting one mat to another, and then connecting the second mat to ground, creates severe technical risks. It artificially increases the electrical resistance of the path to ground. The charge from the first mat must travel through the snap, across the wire, into the second mat, across the second mat, and finally to ground. This extended path often pushes the total resistance outside the acceptable ANSI/ESD S20.20 limits. Daisy-chaining also introduces multiple points of mechanical failure. If the connection between the two mats breaks, the first mat completely loses its ground connection without any visual warning. Each mat must have its own dedicated cord running directly to the common point ground.
Installation does not guarantee ongoing performance. Environmental factors, chemical exposure, and physical wear degrade static control properties over time. You must implement strict verification and maintenance protocols to ensure continuous compliance.
Verify mat performance immediately upon installation using a calibrated surface resistance meter, commonly known as a megohmmeter. The testing procedure requires specific equipment. You must use two 5-pound cylindrical electrodes with conductive rubber bases. Place the electrodes on the surface, spaced exactly 10 inches apart. Apply a 10-volt test charge for highly conductive surfaces, or a 100-volt test charge for dissipative surfaces. The meter will drive the voltage through the material and display the exact surface resistance in ohms.
You must perform this test in multiple locations across the bench. Test the center of the mat where the most activity occurs. Test the edges where wear is less common. Finally, test the resistance from the surface of the mat directly to the groundable point. Document these readings in a compliance log to establish a baseline for future audits.
Standard household or industrial cleaners destroy static-dissipative properties. Cleaners containing bleach, ammonia, or heavy detergents strip the chemical antistats from the rubber. More dangerously, many commercial glass cleaners and multi-surface sprays contain silicone. Silicone leaves a microscopic, highly insulative residue on the surface. This invisible layer completely blocks the mat's ability to absorb static charges from components. A mat cleaned with silicone spray will look perfectly clean and shiny, but it will fail a megohmmeter test instantly.
Implement a compliant cleaning protocol using only specialized ESD mat cleaners. These specialized formulas remove flux residue, thermal paste, grease, and dirt without leaving insulative barriers. They also contain topical antistats that help rejuvenate the surface properties after heavy use.
Establish a regular testing schedule. Test high-traffic workstations, such as active soldering benches, monthly. Test general assembly and inspection areas quarterly. If a mat drifts outside the $10^6$ to $10^9$ ohms range, attempt to clean it thoroughly with an approved ESD cleaner and retest. If the resistance remains out of spec, the internal conductive matrix has failed. You must replace the mat immediately.

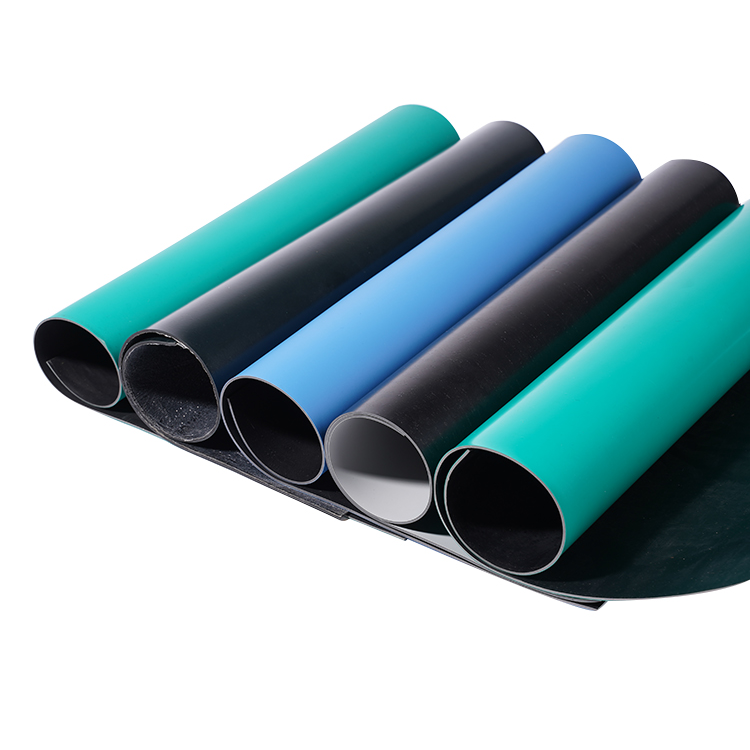

Measure your workbench dimensions to determine the exact square footage required for custom-cut rolls or standard pre-cut sizes.
Select a dual-layer rubber material with an anti-slip finish if your assembly tasks involve heavy chassis work or high-heat soldering.
Install dedicated grounding hardware for each workstation, ensuring every mat connects directly to a common point ground without daisy-chaining.
Implement a strict monthly testing schedule using a calibrated megohmmeter to verify surface resistance remains between $10^6$ and $10^9$ ohms.
Stock specialized, silicone-free cleaners to maintain electrical compliance throughout the lifespan of the installation.
A: In professional contexts, technicians use the terms interchangeably. However, strictly speaking, "anti-static" only means the material won't generate a charge. "ESD mat" specifically implies a static-dissipative surface with verified grounding capabilities that actively bleeds existing charges away from components.
A: No. Floor mats are often highly conductive to support ESD footwear. They lack the necessary resistance and the 1-megohm safety resistor. Placing a highly conductive mat on a workbench poses a severe shock hazard if live circuits or exposed mains voltage are present.
A: You must install a metal snap fastener through the mat material. Connect a specialized grounding cord to this snap. The cord must contain a 1-megohm safety resistor. Finally, connect the other end of the cord to a verified common point electrical ground in your facility.
A: These colors provide significant ergonomic benefits. Light blue and green offer high visual contrast for small silver and black electronic components. The matte finish reduces glare from overhead LED lights, minimizing eye strain. Light colors also make it easy to identify dirt or flux residue.
A: A premium rubber mat typically lasts 3 to 5 years under normal industrial usage. However, harsh chemicals or improper cleaning can shorten this lifespan. Electrical properties often fail before physical degradation is visible, making regular megohmmeter testing essential.
A: Yes. The mat grounds the components resting on it, but it does not effectively ground the human operator. The wrist strap is strictly required to ground the operator. Both elements are necessary to ensure the technician and the components share the exact same ground potential.
