In an SMT production line, small handling details often decide whether PCB boards move smoothly from one process to the next. A rack that looks simple from the outside can directly affect board protection, production rhythm, operator efficiency, and even the stability of automated loading and unloading equipment. That is why choosing the right ESD SMT Magazine Rack should not be treated as a routine accessory purchase.

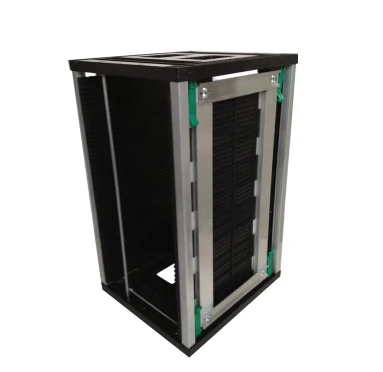

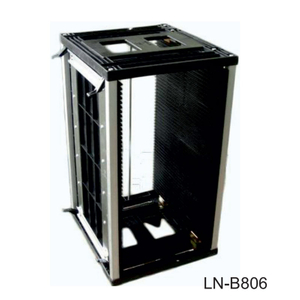

An ESD SMT Magazine Rack is designed for the safe storage, handling, and transportation of PCB boards in SMT production environments. For electronics manufacturers, it works as both a PCB storage tool and a production transfer carrier. LEENOL describes this type of rack as a solution for storing, handling, and transporting PCB boards while helping protect sensitive boards from electrostatic discharge during production and internal logistics.
A suitable ESD SMT PCB Magazine Rack should match your PCB size, production volume, ESD control requirements, equipment compatibility, and daily operating environment. If these details are ignored, the rack may still hold boards, but it may not truly support stable SMT production.
PCB boards are exposed to different risks during SMT production. They may be waiting before loading, cooling after soldering, moving between workstations, or stored temporarily before inspection. During these steps, boards need physical support and electrostatic protection.
A normal PCB rack may provide storage space, but it may not provide the ESD-safe structure required in electronic manufacturing. An Anti-static PCB Magazine Rack is designed to reduce electrostatic risks while keeping PCB boards organized and separated. This is especially important for sensitive electronic components, high-density boards, and automated production lines where board movement must remain stable.
LEENOL’s product pages describe anti-static PCB magazine racks as useful for the production, storage, and transportation of PCBs, with conductive polypropylene and metal structures used in several models.
Many buyers first think of a PCB storage rack as a place to hold circuit boards. In practice, the role is broader. A good ESD PCB Storage Rack helps operators keep boards in order, prevents unnecessary contact between boards, supports efficient transfer, and improves line-side management.
In a busy SMT workshop, boards should not be stacked randomly or placed on unsuitable surfaces. A proper PCB storage and handling rack creates a controlled flow: boards enter the rack, stay separated by slots, move to the next process, and remain protected during temporary storage. This reduces avoidable board scratches, handling mistakes, and static-related risks.

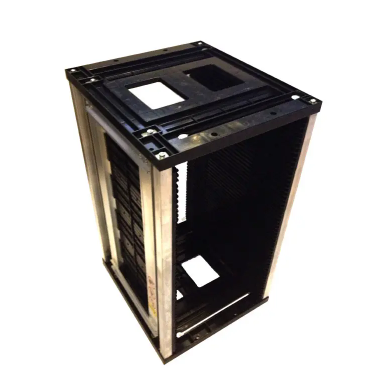

The first step in selecting an ESD PCB Magazine Rack is to confirm the PCB dimensions used in your production. This includes board length, width, thickness, and the range of sizes your line needs to handle.
If your factory produces only one standard board size, the choice is relatively simple. However, many electronics manufacturers handle multiple board types. In this case, an adjustable SMT PCB Magazine Rack is usually more practical.
An adjustable rack allows operators to change the inner width according to the PCB size. This is useful when the same SMT line handles different product batches.
Before choosing, confirm:
The minimum PCB width the rack can hold.
The maximum PCB width the rack can support.
Whether adjustment is smooth enough for frequent changeovers.
Whether the guide system keeps both sides aligned after adjustment.
Some buyers only check the contour size of the rack. This is not enough. The more important detail is the usable inner width and the slot design. If the inner width does not match your PCB range, the rack may be too loose or too tight, both of which can create production problems.

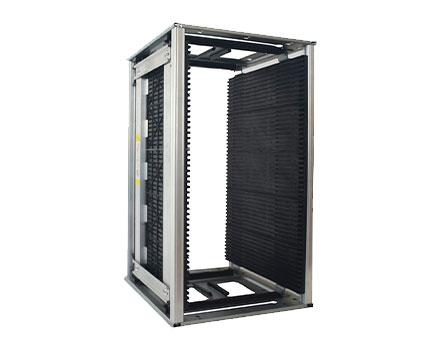

Material selection affects ESD performance, mechanical strength, heat resistance, and long-term service life. Many SMT PCB Magazines combine conductive plastic side panels with metal frames. LEENOL product information also mentions conductive polypropylene and metal construction for PCB magazine or PCB rack products used in automated assembly lines.
Conductive plastic helps reduce static buildup and provides a safer contact surface for PCB boards. This matters because the rack is not only a storage frame; it directly touches or supports the boards during handling.
A strong metal frame improves rigidity and helps the rack remain stable during movement, loading, and repeated use. In SMT production, racks are often moved, adjusted, stacked, or used with line-side equipment. A weak frame may deform over time, which can affect board alignment.
A lightweight rack may be convenient, but it still needs enough structural strength. A heavy-duty rack may be durable, but it must still be easy for operators to handle. The right PCB Magazine Rack should balance ESD safety, strength, weight, and usability.
For SMT production, ESD control is not optional. A rack used for PCB boards should support the factory’s electrostatic control requirements.
When reviewing an ESD SMT Magazine Rack, check whether the supplier provides clear ESD performance information, such as surface resistance range or material description. Some LEENOL ESD SMT magazine rack models list surface resistance values such as 10e3–10e9Ω, depending on the product type.
Surface resistance helps indicate whether the rack material can safely dissipate static charges. If the material is not ESD-safe, static charges may accumulate and create risk for sensitive components.
The rack should be considered part of the whole ESD control environment. It works together with ESD workbenches, ESD trolleys, ESD flooring, grounding systems, ESD clothing, and packaging materials.
If your operators use ESD-safe workstations but store boards in non-ESD racks, the protection chain is incomplete. For better control, the ESD PCB Storage Rack should fit into the same factory-wide ESD management system.

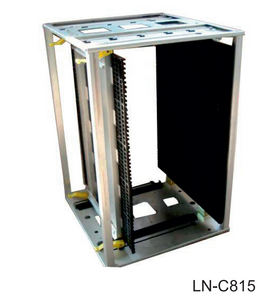

Adjustment design is another key factor. In SMT production, PCB sizes may change from project to project. A rack with reliable adjustment helps reduce changeover time and handling errors.
Common adjustment types include screw adjustment, gear track adjustment, or rack-and-pinion style adjustment. Several LEENOL models describe screw or gear track adjustable structures for ESD SMT magazine racks.
A screw adjustable design is often stable and suitable for production environments where board size changes are not extremely frequent. It provides firm positioning after adjustment.
A gear track adjustable structure can make width changes more convenient, especially when operators need faster adjustment between different PCB batches.
If your line changes board sizes many times per shift, ease of adjustment becomes more important. If your line runs the same board for long periods, stability may matter more than adjustment speed.
The ESD SMT PCB Magazine Rack should work smoothly with the actual equipment used in your SMT production line. This may include PCB loaders, unloaders, conveyors, inspection stations, and storage areas.
LEENOL describes some ESD magazine racks as suitable for automated SMT lines and compatible with loaders and unloaders in high-volume assembly.
Before purchasing, confirm whether the rack size, slot pitch, board support method, and adjustment structure are compatible with your equipment. Even a small mismatch can cause unstable loading, jamming, or inefficient board transfer.
SMT workshops often have limited space. A rack that is too large may create handling inconvenience, while a rack that is too small may reduce storage capacity. The right PCB storage rack should support production without blocking line-side workflow.
Operators often know where current racks create problems. Before choosing a new SMT PCB Magazine Rack, ask whether they face issues such as difficult adjustment, unstable boards, heavy handling, unclear board separation, or poor fit with equipment.

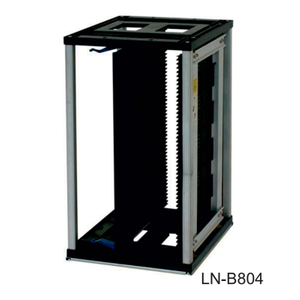

Some PCB boards may still carry heat after soldering or other high-temperature processes. In these cases, heat resistance becomes important.
Not every Anti-static PCB Magazine Rack is suitable for higher-temperature use. If boards are placed into the rack shortly after a thermal process, confirm the temperature resistance of the rack material and guide structure.
Heat resistance is especially relevant when the rack is used near reflow soldering, wave soldering, curing, or other thermal process areas. If the material softens or deforms, the rack may lose dimensional stability and affect PCB positioning.
ESD performance and heat resistance are different properties. A rack can be anti-static but still unsuitable for high-temperature board handling. Always check the supplier’s product specifications.
Different production environments need different rack types. A standard ESD SMT Magazine Rack may be enough for general PCB storage and transfer. A metal or heavy-duty design may be better for larger boards, more demanding transport, or industrial storage environments.

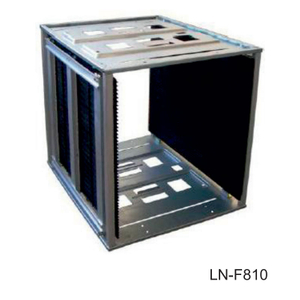

LEENOL’s metal waterproof adjustable ESD magazine rack page describes a heavy-duty rack designed for industrial storage, automated PCB transport, large-format PCB production, and rugged transport between factory zones.
Standard racks are suitable for many routine SMT applications. They are usually easier to move and practical for line-side storage.
Heavy-duty racks are useful when PCB boards are wider, heavier, or handled in more demanding production conditions.
Do not choose a heavy-duty model only because it looks stronger. Choose it when your board size, transport frequency, production environment, or durability requirements justify it.
The right ESD SMT Magazine Rack is the one that matches your real production workflow. It should protect PCB boards, support smooth handling, fit SMT equipment, and remain reliable after repeated daily use.
A practical selection process can be simple. First, define the PCB size range and slot needs. Then confirm ESD performance and material structure. After that, check adjustment method, equipment compatibility, heat resistance, and supplier support. Finally, compare standard and heavy-duty models based on the actual operating environment.
In SMT manufacturing, accessories should make the process smoother. A well-selected ESD SMT PCB Magazine Rack helps organize boards, reduce handling risk, and improve line-side efficiency. A poorly selected rack may create small but repeated problems every day.
LEENOL offers ESD SMT magazine rack products for PCB storage and handling, along with a wider ESD product system for factory and lab environments. For manufacturers looking for an ESD PCB Magazine Rack, SMT PCB Magazine Rack, Anti-static PCB Magazine Rack, or complete PCB storage and handling rack solution, this broader product background can support more consistent ESD management across the production floor.
Do not choose an ESD SMT Magazine Rack only by appearance or unit price. Choose it by PCB size, ESD performance, material strength, adjustment design, SMT line compatibility, heat resistance, and supplier capability. When these factors are matched correctly, the rack becomes more than a storage tool. It becomes a stable part of your SMT production process.
An ESD SMT Magazine Rack is used to store, handle, and transport PCB boards in SMT production. It helps keep boards separated, organized, and protected from electrostatic discharge during production flow.
A normal PCB rack may only provide physical storage. An ESD PCB Magazine Rack is made with anti-static or conductive materials to support electrostatic discharge protection for sensitive electronic boards.
You should check your PCB length, width, thickness, and slot requirements. For factories handling different board sizes, an adjustable SMT PCB Magazine Rack is usually more practical.
Yes, many SMT PCB Magazines are designed for automated SMT production environments. However, you should confirm compatibility with your loaders, unloaders, conveyors, and board transfer equipment before purchasing.
In many cases, yes. Customization may include size, slot quantity, adjustment method, material structure, and packaging. For a better recommendation, provide your PCB dimensions, production process, and ESD requirements to the supplier.
