In an SMT workshop, PCB handling looks simple from the outside. Operators load boards, move them from one station to another, store semi-finished assemblies, and send finished boards to inspection or packing. But anyone who has managed an electronics production line knows that this stage can create many hidden quality risks.
A PCB may be scratched during manual transfer. Components may be damaged when boards are stacked too closely. A batch may be mixed with another order. More seriously, static electricity may damage sensitive electronic components before anyone notices a visible problem.
This is why an ESD SMT Magazine Rack is widely used in electronics manufacturing. It is designed to hold PCB boards safely during SMT production, temporary storage, internal transfer, inspection, and rework. Compared with ordinary plastic trays or simple storage boxes, an ESD SMT PCB Magazine Rack provides both physical protection and electrostatic discharge control.
For factories producing PCB assemblies, consumer electronics, automotive electronics, industrial control boards, communication devices, or precision electronic modules, choosing the right SMT PCB Magazine Rack is not a minor detail. It directly affects handling efficiency, ESD safety, board protection, and production management.

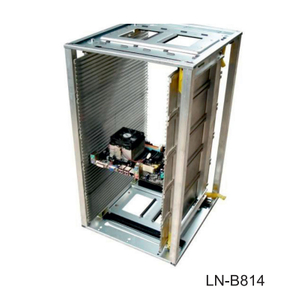

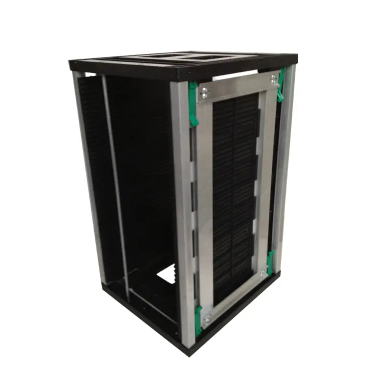

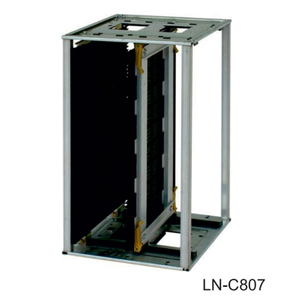

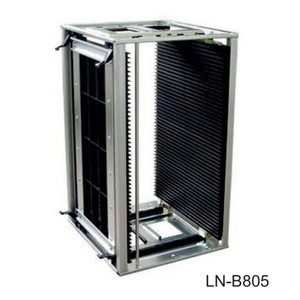

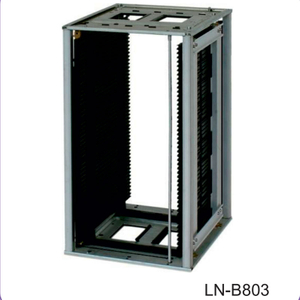

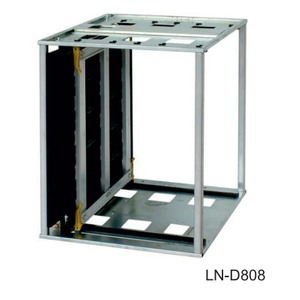

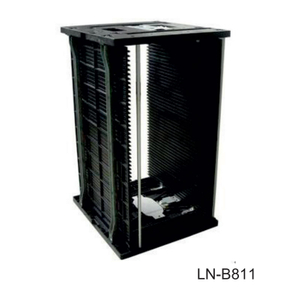

An ESD SMT Magazine Rack is a specialized PCB handling rack used in surface mount technology production. It usually has two side panels with multiple grooves or slots. PCB boards are inserted into these slots one by one, so each board is separated and held in a fixed position.
The rack is normally made with anti-static or conductive materials. Many models use anti-static plastic side panels and a strong metal frame. Some designs also include an adjustable structure, allowing the operator to change the rack width according to different PCB sizes.
In simple terms, an ESD SMT Magazine Rack is used to store and transport PCB boards safely during production. However, its real value is more than storage. It helps control static electricity, prevents board-to-board collision, keeps production batches organized, and supports smoother movement between SMT processes.
A professional ESD PCB Magazine Rack is different from a general storage rack. Ordinary plastic can generate or hold static charge, which is risky for electronic components. A proper anti-static PCB rack is designed to dissipate static charge in a controlled way and reduce ESD-related damage during handling.
PCB boards go through several steps before they become finished assemblies. In a common SMT line, the process may include solder paste printing, SPI inspection, component placement, reflow soldering, AOI inspection, manual repair, functional testing, and final assembly.
Between these steps, boards are frequently moved, stored, or waiting for the next process. If this movement is not controlled, problems can appear quickly.
Boards may rub against each other and damage solder joints or components. Large PCBs may bend if they are stored incorrectly. Small boards may be misplaced or mixed between different production orders. Operators may touch board surfaces too often, increasing the risk of contamination or ESD discharge.
For this reason, a PCB storage rack is not only a container. It is part of the factory’s process control system. A good rack helps each PCB board stay separated, traceable, and protected.
This is especially important in factories where many PCB models are produced at the same time. Without a standardized SMT production rack, operators may rely on temporary trays, cartons, or open tables. This may seem convenient in the short term, but it often leads to scratches, mixed batches, rework, or quality complaints.
The protection provided by an ESD SMT PCB Magazine Rack mainly comes from three areas: ESD control, mechanical protection, and organized movement.
First, the rack helps reduce electrostatic discharge risk. Electronic components can be sensitive to static electricity. Even if the discharge is too small for a person to feel, it may still damage ICs, chips, sensors, LEDs, or other precision components. Sometimes the board does not fail immediately, but the component reliability has already been weakened.
An anti-static PCB rack uses ESD-safe materials to help static charge dissipate more safely. When used together with ESD workbenches, ESD trolleys, wrist straps, ESD flooring, and other control measures, it becomes part of a more complete ESD protection system.
Second, the rack protects PCB boards from physical damage. Each board is placed in a separate slot. This avoids direct contact between boards and reduces the risk of scratching, collision, or component pressure. For boards with tall components, connectors, heat sinks, or delicate solder joints, this separation is especially useful.
Third, the rack improves internal logistics. Operators can load a defined number of boards into one rack, move them as a batch, and send them to the next station. This makes production flow easier to manage. It also helps with batch separation, temporary storage, inspection queues, and rework control.
Most SMT PCB Magazine Rack designs have several common parts.

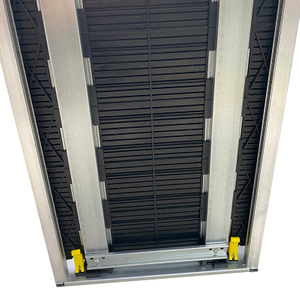

The side panels are the most important part for holding PCB boards. They include grooves or slots where boards are inserted. The slot spacing should be accurate and consistent. If the grooves are poorly made, boards may get stuck, tilt, or become difficult to remove.
The frame gives the rack strength. In production environments, racks are moved many times a day. A weak frame may deform after repeated use, especially when the rack carries large or heavy boards. A stable metal frame helps the rack keep its shape and extends service life.
The adjustment mechanism allows one rack to fit different PCB widths. Some racks use screw adjustment, while others use gear or track adjustment. A smooth adjustment system saves time when the line changes products frequently.
The base affects stability. A rack should stand firmly when fully loaded. It should not shake easily or tip over during handling. For automated SMT lines, the base and frame dimensions may also need to match loaders, unloaders, conveyors, or storage carts.
Material selection is another key point. The rack should meet ESD requirements and remain reliable during daily use. If the production environment has higher temperature demands, the material should also be selected accordingly.

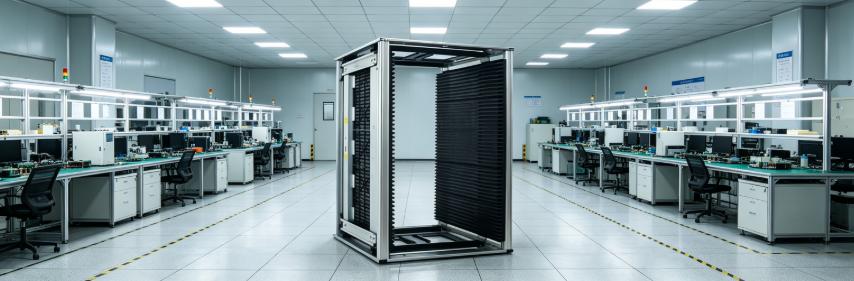

An ESD SMT Magazine Rack is used in many areas of an electronics factory.
In the SMT line, it is used for loading and unloading PCB boards before and after machine processing. Bare boards, semi-finished boards, and assembled boards can all be placed in the rack depending on the process requirement.
In inspection areas, a PCB storage rack helps organize boards waiting for AOI, visual inspection, ICT, or functional testing. Instead of placing boards randomly on a table, technicians can manage them by batch or production order.
In repair and rework areas, an ESD PCB Magazine Rack keeps boards separated while they wait for diagnosis or repair. This is helpful when the same repair station handles boards from several product models.
In internal transportation, an anti-static PCB rack can be placed on an ESD trolley and moved between departments. This is safer and more organized than carrying boards by hand or stacking them in open boxes.
In temporary storage, the rack helps protect boards before final assembly or packaging. For factories with high-mix, low-volume production, this function is particularly important because different PCB models may need to wait between processes.
When selecting an ESD SMT Magazine Rack, manufacturers should not only look at the appearance or price. The rack must match the actual production process.
The first factor is PCB size. Check the minimum and maximum PCB dimensions used in your factory. The rack width should be adjustable enough to cover current products and possible future models.
The second factor is board thickness and component height. If boards have tall components, narrow slot spacing may not be suitable. If the boards are heavy, the side panels and frame must be strong enough to support them without deformation.
The third factor is ESD performance. The rack should be made from ESD-safe materials with suitable surface resistance. It should also fit into the factory’s existing ESD control system.
The fourth factor is adjustment convenience. If your production line changes products often, a rack that is easy to adjust can reduce setup time. If the rack is used for one fixed product, a simpler but more stable design may be enough.
The fifth factor is compatibility with automation. If the rack will be used with SMT loaders or unloaders, the external dimensions, positioning structure, and board loading direction must be checked carefully.
The sixth factor is durability. A low-quality rack may look similar at first, but it can deform, loosen, or lose performance after repeated use. For factories with continuous SMT production, durability often matters more than the lowest purchase price.
One common mistake is using ordinary plastic racks for PCB handling. This may reduce initial cost, but it increases ESD risk. For sensitive electronic components, this is not a safe long-term solution.
Another mistake is choosing a rack without checking the PCB size range. If the rack cannot adjust properly, boards may be inserted too tightly or too loosely. Both situations can cause handling problems.
Some factories also ignore slot spacing. When components are tall or mounted close to the board edge, insufficient spacing may cause contact damage. Before ordering, it is better to confirm the actual board structure, not only the board length and width.
A fourth mistake is buying only based on unit price. A cheaper rack may require more frequent replacement, cause more board damage, or slow down production. The better question is not “Which rack is the cheapest?” but “Which rack gives stable performance in our production line?”
Finally, some manufacturers forget regular inspection. Even a good ESD SMT PCB Magazine Rack should be checked after long-term use. Broken slots, loose screws, bent frames, or contaminated surfaces may affect both handling safety and ESD performance.
LEENOL focuses on ESD and cleanroom anti-static solutions for factories, labs, electronics manufacturing, semiconductor-related production, and other industrial environments. Its product system covers ESD handling and storage equipment, ESD packing materials, factory and lab furniture, personal protection products, cleanroom products, and ESD testing tools.
For PCB handling, LEENOL provides ESD magazine racks, ESD SMT PCB Magazine Rack products, ESD trolleys, ESD workbenches, ESD table mats, ESD chairs, ESD clothing, ESD wrist straps, and other related products. This is useful for manufacturers that want to build a more complete ESD-safe production area instead of purchasing isolated items separately.
LEENOL’s ESD SMT Magazine Rack options are designed for PCB storage, SMT production transfer, and factory handling. Depending on the application, customers can choose suitable rack structures, sizes, materials, and adjustment methods.
For electronics manufacturers, the advantage of working with an ESD solution supplier is that the rack can be considered together with the full production environment. A PCB rack may seem like a small product, but it works best when it matches ESD workstations, storage systems, trolleys, packaging, and testing procedures.
An ESD SMT Magazine Rack is a necessary handling tool for modern electronics manufacturing. It protects PCB boards from static electricity, collision, scratches, bending, and disorganized transfer between production stages.
A suitable ESD SMT PCB Magazine Rack can make SMT production cleaner, safer, and more efficient. It helps operators manage boards properly, supports batch control, reduces unnecessary manual contact, and lowers the risk of hidden ESD damage.
When choosing an SMT PCB Magazine Rack, manufacturers should consider PCB size, component height, slot spacing, material performance, ESD requirements, adjustment method, durability, and compatibility with production equipment.
For companies looking for an ESD PCB Magazine Rack, anti-static PCB rack, PCB storage rack, or SMT production rack, LEENOL provides practical ESD handling and storage solutions for electronics manufacturing environments.
