What Tests Ensure Proper Grounding for An ESD Wrist Strap?

You need to confirm that your anti static wristband provides proper grounding to protect sensitive electronics from electrostatic discharge. Anti-static wristbands play a vital role in electronic manufacturing, semiconductors, medical equipment, and new energy industries. You will find that using an ESD wrist strap or anti-static wrist strap helps prevent costly damage. Testing anti-static wristbands and antistatic wrist straps gives you peace of mind and keeps your workspace safe. Anyone can follow simple steps to check anti-static wristbands and interpret results.

Key Takeaways

• Regularly test your anti-static wrist strap to ensure it provides proper grounding. This prevents damage to sensitive electronics from electrostatic discharge.

• Perform a continuity test before each use. This simple check confirms that electricity flows through the strap without breaks.

• Use a resistance test to measure the electrical resistance between your skin and the ground. A safe range is between 800 kilo-ohms and 10 mega-ohms.

• Always wear the wrist strap on bare skin and connect it to a reliable ground source. This ensures effective discharge of static electricity.

• Replace any damaged or failing wrist straps immediately. Keeping a spare at your workstation helps maintain safety and efficiency.

How Do ESD Wristbands Work?

Electrostatic Discharge Basics

Electrostatic discharge can damage sensitive electronics. You create static electricity when you walk across a carpet or remove a sweater. This charge builds up on your body. If you touch a circuit board or a computer chip, the charge can jump from your skin to the device. Even a tiny spark can destroy important components. You must control static electricity in places like electronics factories, repair shops, and laboratories.

Tip: Always work in a static-safe area when handling electronics. Use antistatic wrist straps and mats to protect your devices.

ESD Wrist Strap Function

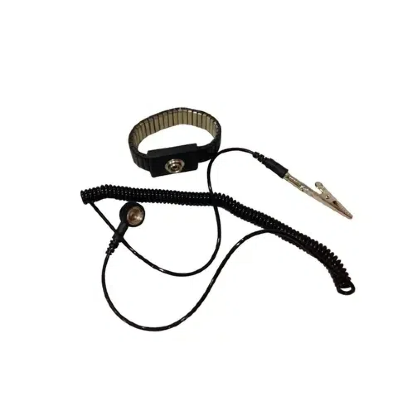

You use an ESD Wrist Strap or antistatic wristband to safely remove static electricity from your body. The strap has a conductive material inside. You wear the strap on your wrist and connect it to a ground point. This connection lets static charges flow away from your skin and into the ground. You prevent accidental discharge by keeping your body at the same electrical potential as your workspace.

Here is a simple table showing how an antistatic wrist strap works:

You must check your antistatic wrist straps often. Testing ensures that the strap, cord, and ground connection work together. If you wonder how do esd wristbands work, remember that they protect your electronics by giving static charges a safe path to the ground.

Key Tests for ESD Wrist Straps

You need to test your anti static wristband regularly to guarantee proper grounding and effective static control measures. You can choose from several methods to check if your anti-static wrist strap works as intended. Each test helps you confirm that your anti-static wristbands protect your devices from electrostatic discharge.

Continuity Test

You use the continuity test to check if electricity can flow through your anti-static wrist strap. This test helps you find breaks or faults in the band, cord, or connectors. You need a simple multimeter for this test.

Steps for Continuity Test:

1. Set your multimeter to the continuity setting.

2. Place one probe on the metal part of the anti static wristband.

3. Touch the other probe to the end of the grounding cord.

4. Listen for a beep or look for a reading on the display.

If you hear a beep or see a low resistance value, your anti-static wrist strap passes the test. If you get no signal, you need to replace your anti-static wristbands.

Note: You should perform this test before each use, especially if you work in environments with strict static control procedures.

Resistance Test

You use the resistance test to measure the electrical resistance between your skin and the ground connection. This test ensures that your anti static wristband provides safe discharge without letting too much current flow. You need a multimeter or a dedicated resistance tester.

How to Perform a Resistance Test:

• Wear your anti-static wrist strap on bare skin.

• Connect the grounding cord to a known ground point.

• Place one probe on the metal part touching your skin.

• Place the other probe at the end of the cord.

You should see a resistance value between 800 kilo-ohms and 10 mega-ohms. This range keeps you safe while allowing static charges to flow away. If the resistance falls outside this range, your anti-static wristbands may not protect you or your equipment.

Using a Wrist Strap Tester

You can use a wrist strap tester for quick and reliable checks. This device is designed for testing anti-static wrist straps and anti static wristbands in seconds. You simply wear your anti-static wrist strap, plug the cord into the tester, and press the button.

The tester shows a pass or fail result. Some models use lights or digital displays. You can use these testers to check all types of esd wrist straps, including disposable and reusable models.

Benefits of Wrist Strap Testers:

• Fast and easy to use

• No technical knowledge required

• Suitable for daily checks

Tip: You should keep a wrist strap tester at your workstation. Regular testing helps you follow static control procedures and maintain static control measures.

You need to test your anti static wristband often to keep your workspace safe. You should use continuity and resistance tests for detailed checks. You can use a wrist strap tester for quick daily verification. You protect your devices and follow best practices for electrostatic discharge safety when you use these tests as part of your routine.

Correct Use of Anti-Static Wrist Strap

Wearing on Bare Skin

You must wear your anti static wristband directly on bare skin. The conductive material inside the band needs to touch your skin to work. If you wear anti-static wristbands over sleeves or gloves, you block the path for static electricity. You protect static sensitive electronic components only when the band sits snugly against your wrist. You should check that the anti-static wrist strap fits comfortably but does not slide around. Loose anti-static wristbands may lose contact and fail to discharge static.

Tip: Always inspect your anti static wristband before use. Look for any damage or worn spots that could affect performance.

Connecting to Ground

You need to connect your esd wrist strap to a reliable ground source. Most workstations have a dedicated ground point for esd wrist straps. You can use a grounding plug, a banana jack, or a snap connector. You should avoid attaching your anti-static wrist strap to ungrounded surfaces like metal tables or painted objects. These surfaces do not provide a safe path for static to flow away. You must use anti-static wristbands with approved ground connections to protect static-sensitive components.

Here is a simple table showing common grounding sources:

Maintaining Ground Contact

You must keep your anti static wristband connected to ground at all times while working with static-sensitive electronic components. If you disconnect your anti-static wrist strap, you risk building up static again. You should check the cord and connectors for secure attachment. You can use esd wrist straps with coiled cords to allow movement without losing ground contact. You need to test your anti-static wristbands regularly to confirm proper use and maintenance. You protect your devices and ensure proper use and care by following these steps.

Note: You should never touch static sensitive electronic components unless your anti static wristband is properly grounded.

You keep your workspace safe by wearing anti-static wristbands on bare skin, connecting to a true ground, and maintaining ground contact. You reduce the risk of electrostatic discharge and protect your static-sensitive components with proper use and maintenance of esd wrist straps.

Troubleshooting ESD Wrist Strap Issues

Failed Test Solutions

You may find that your anti-static wrist strap does not pass a continuity or resistance test. If this happens, you should act quickly to restore safety. First, inspect the anti static wristband for visible damage, such as frayed cords or worn connectors. Replace any broken parts. Clean the metal contacts with a dry cloth to remove dirt or oils. If your anti-static wristbands still fail, try a different ground point. Sometimes, the problem comes from a faulty ground connection. If you continue to get poor results, you should replace the anti-static wrist strap. You might ask, how often should an anti static wrist strap be replaced? You should change it immediately if it fails a test or shows signs of wear.

Tip: Always keep a spare anti static wristband at your workstation. Quick replacement helps you maintain static control measures.

Common Mistakes

Many users make errors that reduce the effectiveness of anti-static wristbands. You should avoid these common mistakes to ensure proper protection:

• Wearing the anti-static wrist strap over clothing or gloves

• Failing to connect the strap to a true ground source

• Using a damaged or dirty anti static wristband

• Forgetting to test the strap before use

You must remember these common mistakes to avoid. Proper use keeps you safe from electrostatic discharge and protects sensitive devices.

Best Practices

You can follow best practices for using anti-static wristbands to improve safety and reliability. Always wear the anti-static wrist strap on bare skin. Test your anti-static wristbands before each session. Connect to a verified ground point. Replace your anti static wristband if you see any damage or if it fails a test. Store your anti-static wristbands in a clean, dry place. You should train others in these practices to build a safer workspace.

You protect your equipment and follow the best practices for using anti-static wristbands when you make these steps part of your routine.

You protect your sensitive electronics when you test and use your anti-static wrist strap correctly. Regular checks help you avoid costly damage from electrostatic discharge. Make testing and grounding part of your daily routine. Stay safe by checking your anti static wristband before every project. Share this guide with your team to help everyone keep their workspace protected.

FAQ

How often should you test your ESD Wrist Strap?

You should test your ESD Wrist Strap before each use. Daily checks help you catch problems early. Regular testing keeps your antistatic wrist strap reliable and protects your sensitive electronics.

Can you use an antistatic wrist strap without a ground connection?

No, you cannot. An antistatic wrist strap must connect to a true ground. Without grounding, the antistatic wristband will not protect your devices from static discharge.

What resistance value is safe for antistatic wrist straps?

A safe resistance for antistatic wrist straps falls between 800kΩ and 10MΩ. This range allows static to flow away safely while protecting you from electric shock.

Do antistatic wristbands work over clothing?

No, antistatic wristbands must touch your bare skin. Clothing blocks the contact needed for static to discharge. Always wear your antistatic wrist strap directly on your wrist.

What should you do if your ESD Wrist Strap fails a test?

Replace your ESD Wrist Strap right away if it fails a test. Check the cord and connectors for damage. Always keep a spare antistatic wrist strap at your workstation for quick replacement.
